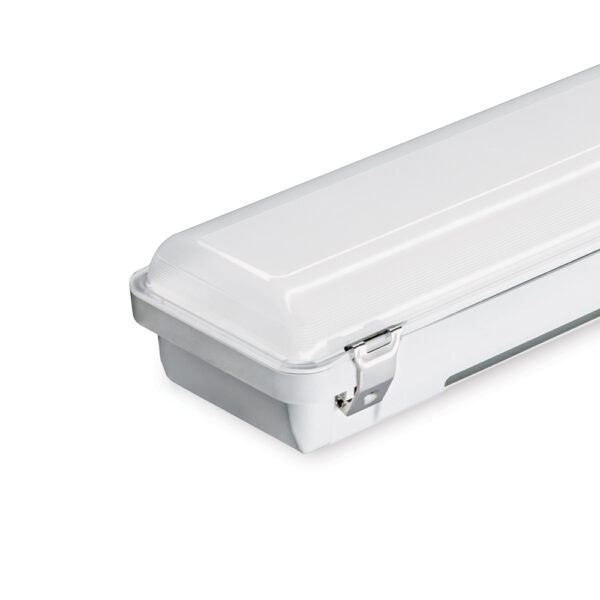

Umbra IP66

  • Tri-colour CCT selection (3000K/4000K/5700K)
  • IP66 weatherproof rating and IK08 impact rating
  • Polycarbonate body with stainless steel clips
  • Exclusive 5 year warranty

Selected Models

  • DALI-2 dimmable driver
  • Selectable output power via dip switch
SKU: Umbra IP66 Category:

Mechanical

IP RatingIP66
IK RatingIK08
Fitting ColourGrey
Diffuser MaterialPolycarbonate

Colour temperature

LED Wattage
EV-UMBRA-IP66-600-DA-EMD
EV-UMBRA-IP66-600-DA-EMD-SD
EV-UMBRA-IP66-600-DA-SD		11 W
EV-UMBRA-IP66-1200-DA-EMD
EV-UMBRA-IP66-1200-DA-EMD-SD
EV-UMBRA-IP66-1200-DA-SD
EV-UMBRA-IP66-1200-EMD
EV-UMBRA-IP66-1200-EMD-S		22 W
Luminaire Lumens
EV-UMBRA-IP66-600-DA-EMD
EV-UMBRA-IP66-600-DA-EMD-SD
EV-UMBRA-IP66-600-DA-SD		1440 lm
EV-UMBRA-IP66-1200-DA-EMD
EV-UMBRA-IP66-1200-DA-EMD-SD
EV-UMBRA-IP66-1200-DA-SD
EV-UMBRA-IP66-1200-EMD
EV-UMBRA-IP66-1200-EMD-S		2900 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.
CCT3000 K

Driver

Driver Type
EV-UMBRA-IP66-1200-DA-EMD
EV-UMBRA-IP66-1200-DA-EMD-SD
EV-UMBRA-IP66-1200-DA-SD
EV-UMBRA-IP66-600-DA-EMD
EV-UMBRA-IP66-600-DA-EMD-SD
EV-UMBRA-IP66-600-DA-SD		DALI DT6 LED Driver
EV-UMBRA-IP66-1200-EMD
EV-UMBRA-IP66-1200-EMD-S		Fixed output
DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers.

Sensor (S suffix)

Detection Range [1] 10 m
Time Delay5s-14mins
Sensor Communication [1] DALI 2
[1] Inbuilt DALI-2 Sensor for use with DALI-2 Compliant control systems. Some features and functions are only available for use with DALI-2 Application controllers which support the features. This product also supports a standalone mode for limited use without a DALI-2 application controller.

Emergency (EM suffix)

Emergency ClassificationC0:D63, C90:D40
Emergency Output Power
EV-UMBRA-IP66-600-DA-EMD
EV-UMBRA-IP66-600-DA-EMD-SD		3000 mW
EV-UMBRA-IP66-1200-DA-EMD
EV-UMBRA-IP66-1200-DA-EMD-SD
EV-UMBRA-IP66-1200-EMD
EV-UMBRA-IP66-1200-EMD-S		3200 mW
Replacement Battery Code53023
Emergency Duration120 mins
Emergency Lumen Output400 lm
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.

Compliance

Product Design Life8
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS 60598.2.1

Warranty

Commercial Use Warranty
EV-UMBRA-IP66-1200-DA-SD
EV-UMBRA-IP66-600-DA-SD		5 RTB (Total 5 Years)
EV-UMBRA-IP66-1200-DA-EMD
EV-UMBRA-IP66-1200-DA-EMD-SD
EV-UMBRA-IP66-1200-EMD
EV-UMBRA-IP66-1200-EMD-S
EV-UMBRA-IP66-600-DA-EMD
EV-UMBRA-IP66-600-DA-EMD-SD		5 RTB General, 6 RTB Emergency
EV/UMBRA/IP66/1200
EV/UMBRA/IP66/600
DALI DT6 LED Driver
Order codeItem codeDescriptionAvailability
Fixed output
Order codeItem codeDescriptionAvailability
EV/UMBRA/IP66/1200 (22W 4000K)
IES File

IES File


EV/UMBRA/IP66/1200 (36W 5700K)
IES File

IES File


EV/UMBRA/IP66/1200 (36W 4000K)
IES File

IES File


EV/UMBRA/IP66/1200 (22W 3000K)
IES File

IES File


EV/UMBRA/IP66/1200 (36W 3000K)
IES File

IES File


EV/UMBRA/IP66/1200 (22W 5700K)
IES File

IES File


EV/UMBRA/IP66/1200/EM (EM)
IES File

IES File


EV/UMBRA/IP66/600 (18W 5700K)
IES File

IES File


EV/UMBRA/IP66/600 (11W 3000K)
IES File

IES File


EV/UMBRA/IP66/600 (18W 4000K)
IES File

IES File


EV/UMBRA/IP66/600 (11W 5700K)
IES File

IES File


EV/UMBRA/IP66/600 (11W 4000K)
IES File

IES File


EV/UMBRA/IP66/600 (18W 3000K)
IES File

IES File


EV/UMBRA/IP66/600/EM (EM)
IES File

IES File
