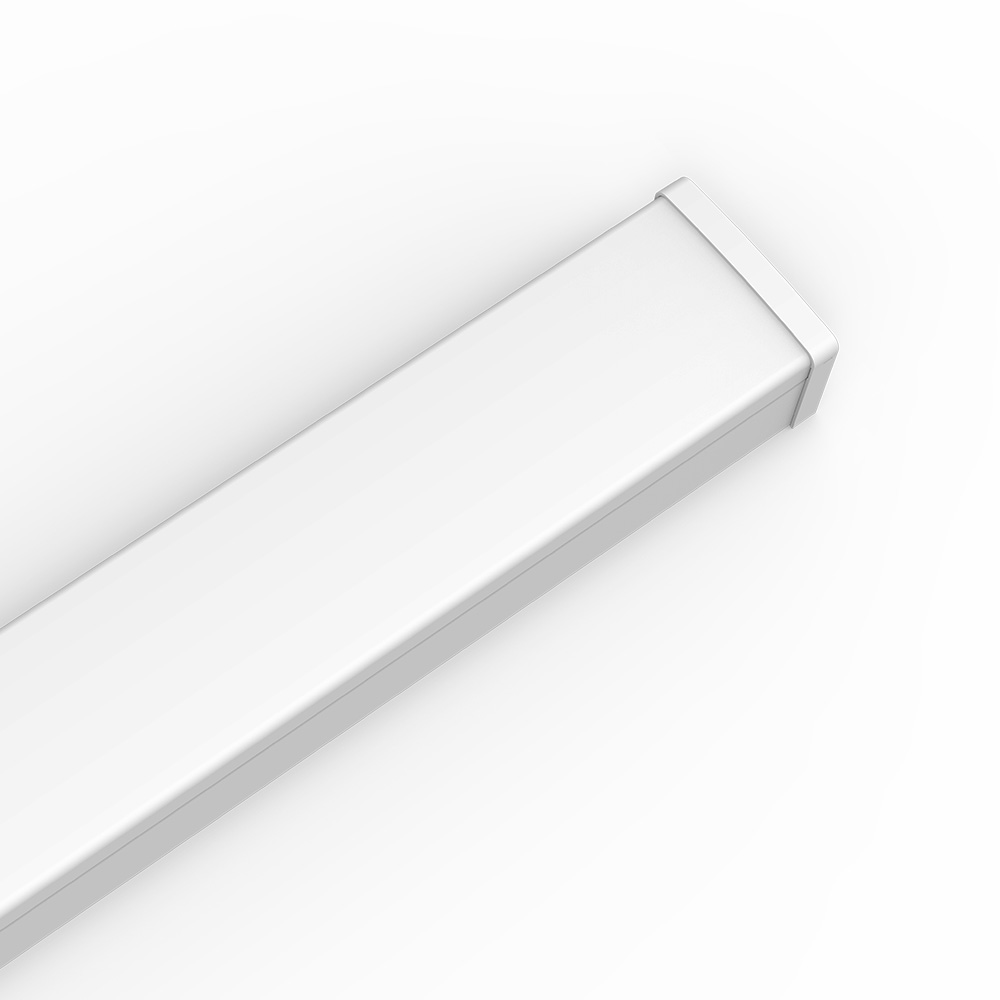

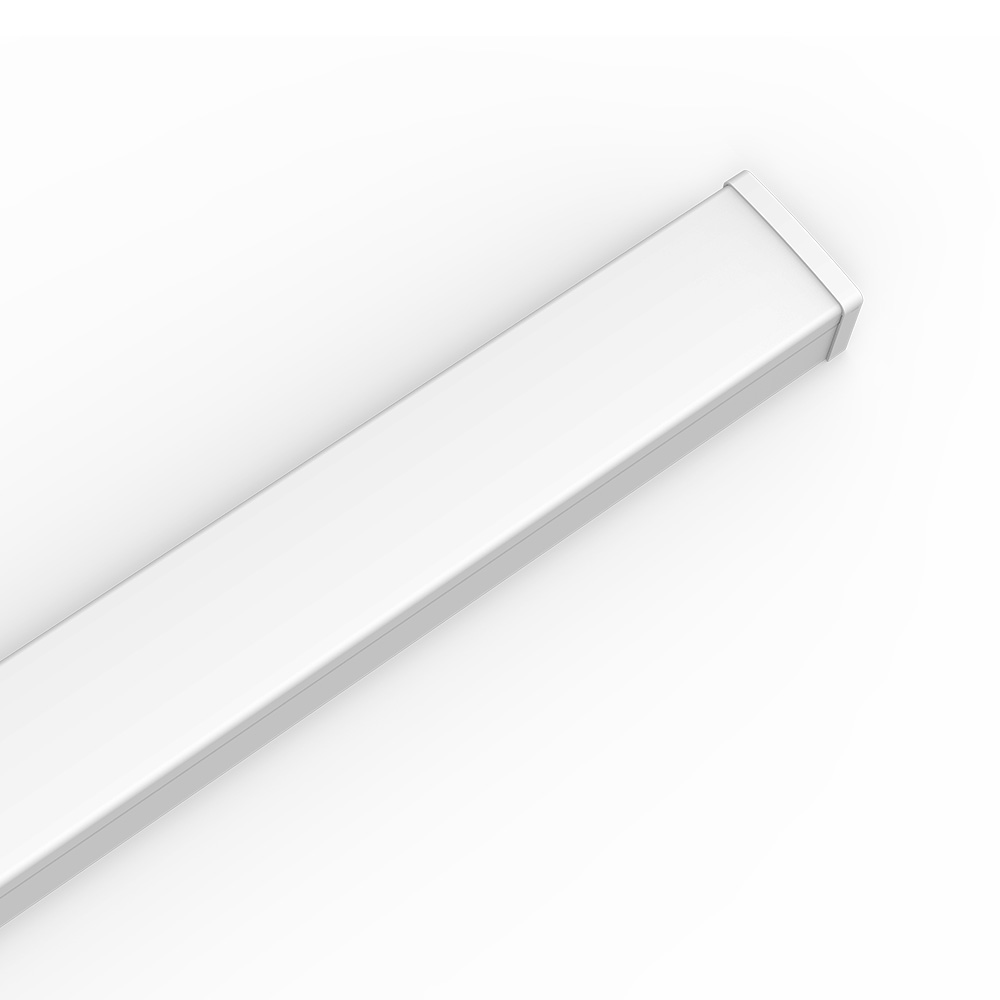

Efficiencies
| Total System Efficiency | |
|---|---|
| EV-UMBRA-CORE-WB-DIFF-600 EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S EV-UMBRA-CORE-WB-DIFF-600-S | 124.8 lm/W |
| EV-UMBRA-CORE-WB-DIFF-1200 EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S EV-UMBRA-CORE-WB-DIFF-1200-S | 135.5 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |

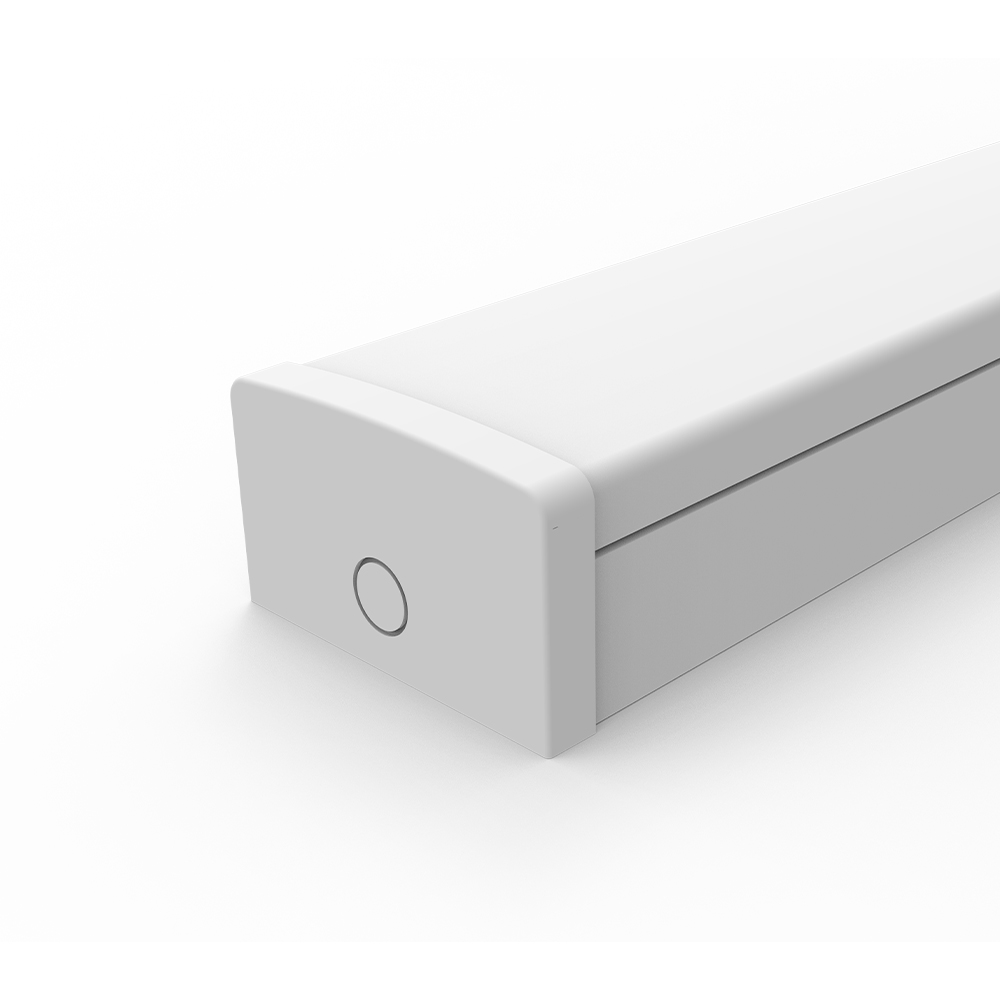

Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | White |
| Body Material | Powder-coated steel |
| Diffuser Material | PMMA |
| Installation Type | Surface mount |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Power Factor | 0.9 |
| Maximum Wattage | |
| EV-UMBRA-CORE-WB-DIFF-600 EV-UMBRA-CORE-WB-DIFF-600-S | 18 W |
| EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S | 20 W |
| EV-UMBRA-CORE-WB-DIFF-1200 EV-UMBRA-CORE-WB-DIFF-1200-S | 36 W |
| EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S | 38 W |
| System Max Wattage | |
| EV-UMBRA-CORE-WB-DIFF-600 EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S EV-UMBRA-CORE-WB-DIFF-600-S | 18 W |
| EV-UMBRA-CORE-WB-DIFF-1200 EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S EV-UMBRA-CORE-WB-DIFF-1200-S | 36 W |
| Input voltage | 220-240V~ |
| Standby Power | |
| EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S | 1.5 W |
| EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S | 2.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
| Beam Angle | 125 ° |
LED Lifetime
| LED Lifetime | >54000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| EV-UMBRA-CORE-WB-DIFF-1200 EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S EV-UMBRA-CORE-WB-DIFF-1200-S
| |||||||||||||||||||||
| EV-UMBRA-CORE-WB-DIFF-600 EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S EV-UMBRA-CORE-WB-DIFF-600-S
| |||||||||||||||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Wiring Type | |
| EV-UMBRA-CORE-WB-DIFF-1200 EV-UMBRA-CORE-WB-DIFF-1200-S EV-UMBRA-CORE-WB-DIFF-600 EV-UMBRA-CORE-WB-DIFF-600-S | Re-wireable terminal block (3 pin) |
| EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S | Re-wireable terminal block (4 pin) |
| Driver Mode | Constant Current |
Sensor (S suffix)
| Sensor Type | Microwave |
|---|---|
| Detection Range | 8 m |
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | Yes |
| Detection Angle | 360 |
Emergency (EM suffix)
| Emergency Classification | C0:D40, C90:D32 |
|---|---|
| Emergency Output Power | 2700 mW |
| Replacement Battery Code | 53023 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | |
| EV-UMBRA-CORE-WB-DIFF-600-EM EV-UMBRA-CORE-WB-DIFF-600-EM-S | 400 lm |
| EV-UMBRA-CORE-WB-DIFF-1200-EM EV-UMBRA-CORE-WB-DIFF-1200-EM-S | 550 lm |
| Emergency Control | Ektor SafeTest (Automatic self-test) |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, RTB |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
