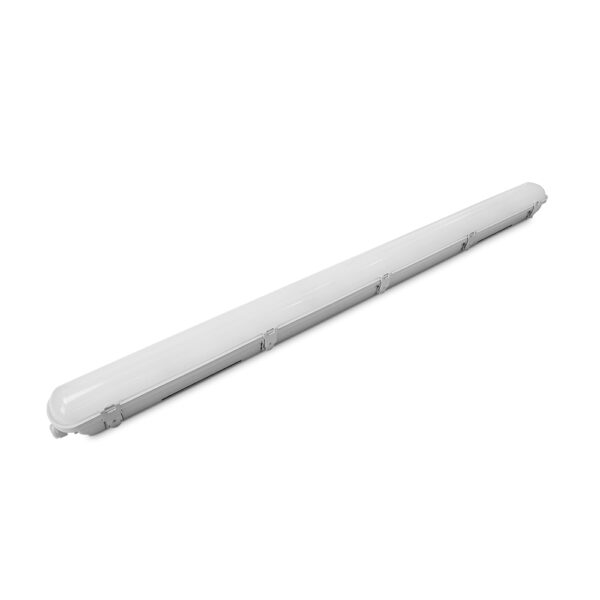

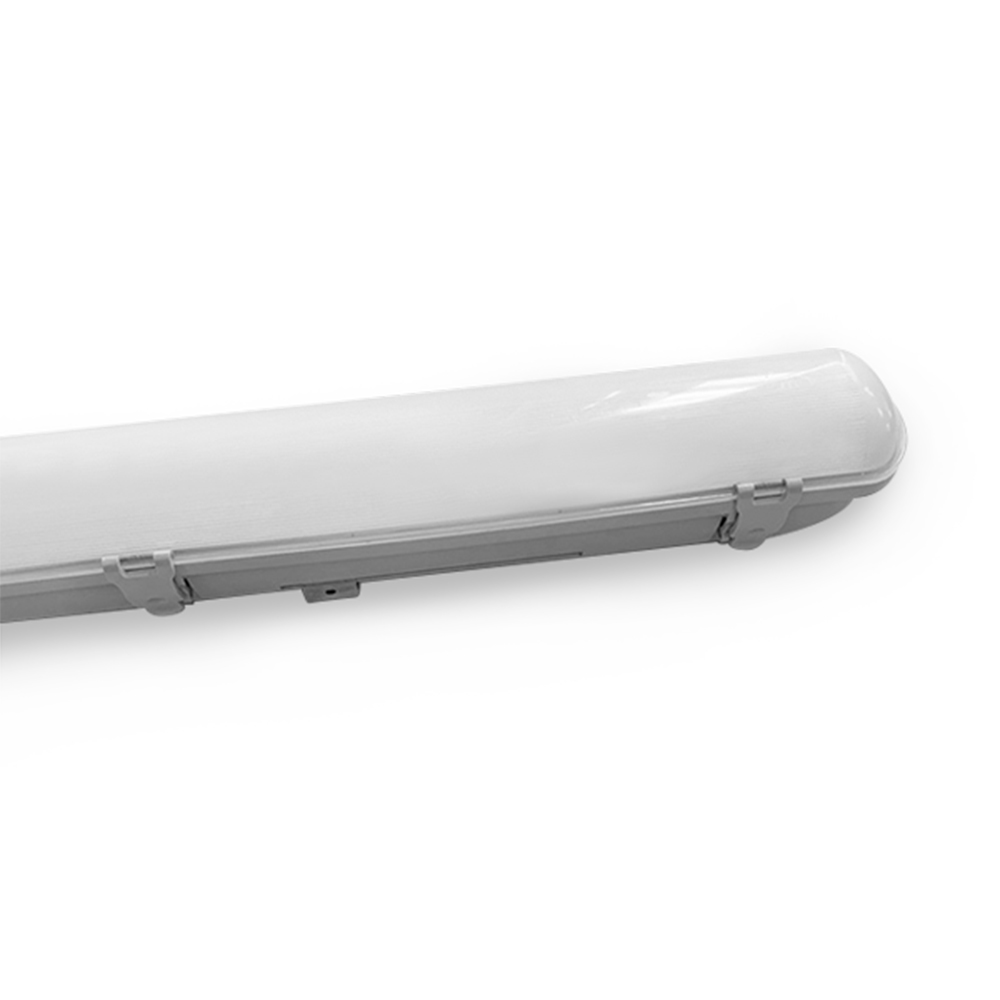

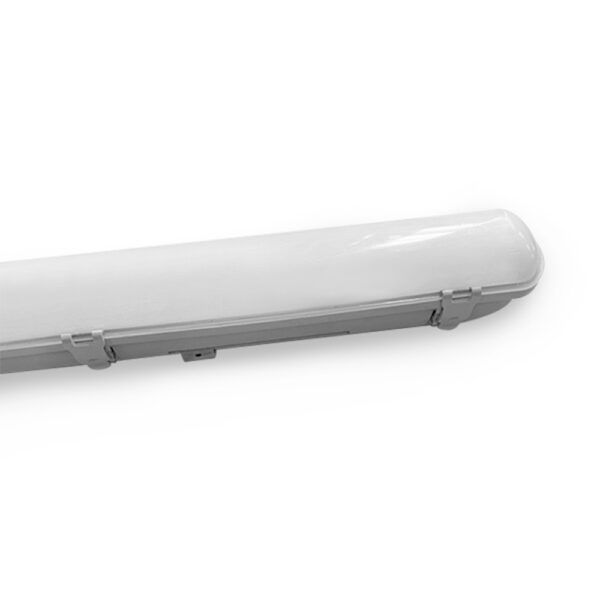

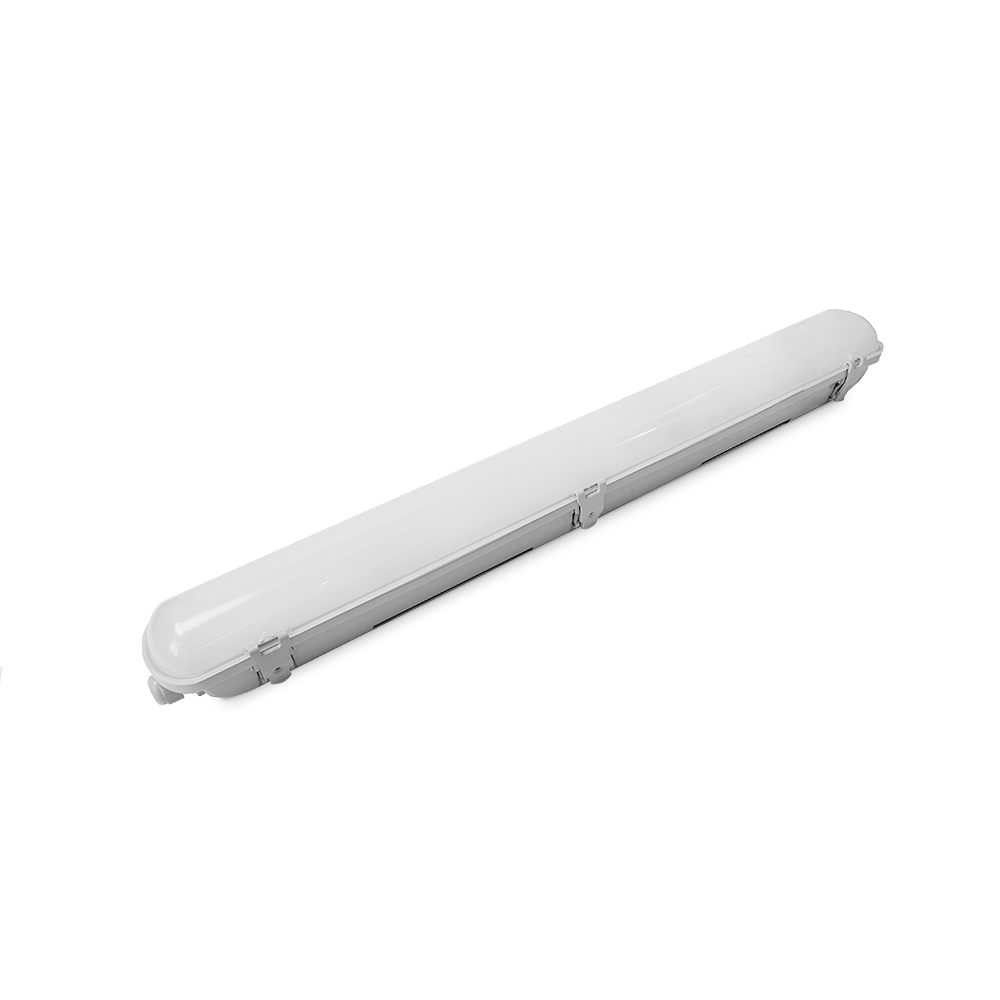

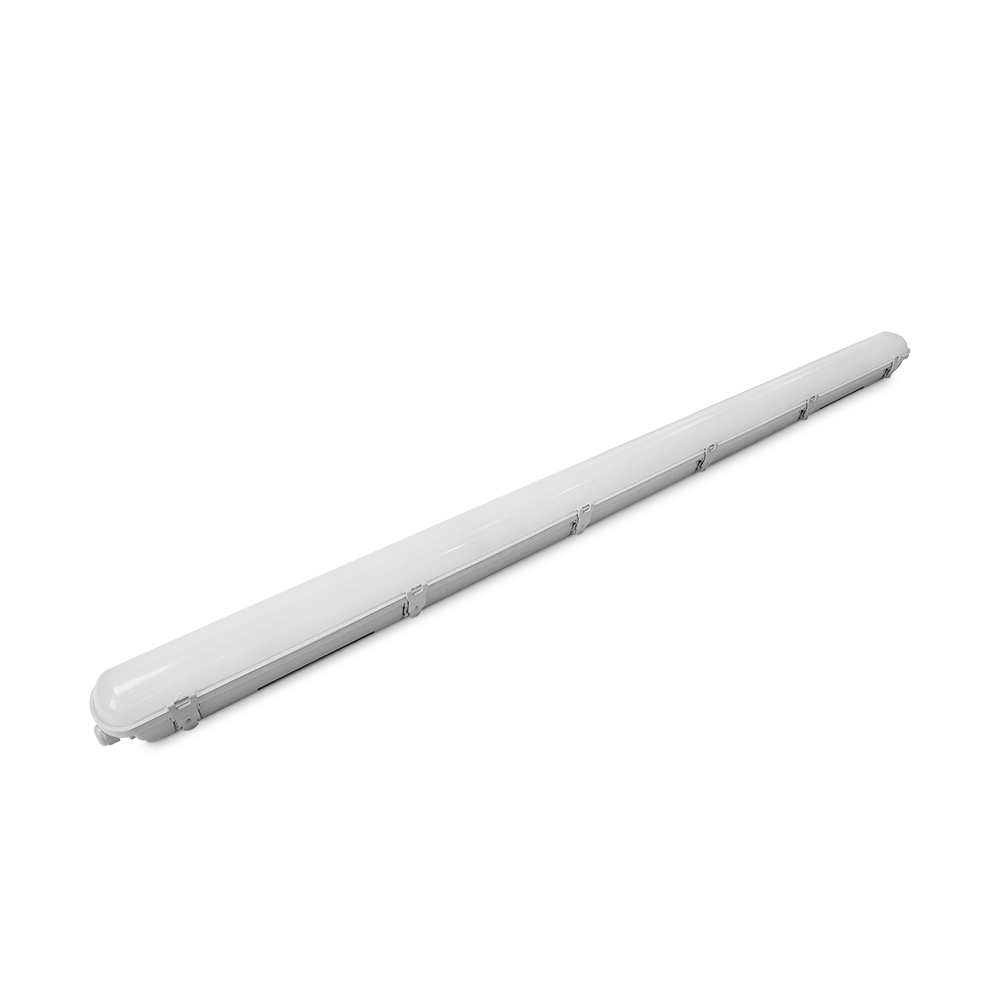

Umbra Core IP65

$0.00

Core IP65 Weatherproof Batten, Dual Power, Tri-CCT

  • Tri-colour selection
  • Selectable output power
  • Increased ambient temperature of 40 degrees
  • IP65 weatherproof rating and IK08 impact rating
  • High efficiency design >130lm/W
  • Excellent LED lifetime for energy efficient lighting designs
SKU: Umbra Core IP65 Category: Tags: , , , , , , ,

Efficiencies

Total System Efficiency
EV-UMBRA-CORE-IP65-600-TRI126 lm/W
EV-UMBRA-CORE-IP65-1500-EM-TRI
EV-UMBRA-CORE-IP65-1500-TRI
132 lm/W
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
134 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourGrey
IK RatingIK08
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Current
EV-UMBRA-CORE-IP65-600-TRI0.09 A
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
0.16 A
EV-UMBRA-CORE-IP65-1500-EM-TRI
EV-UMBRA-CORE-IP65-1500-TRI
0.23 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-CORE-IP65-600-TRI19 W
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
32 W
Power Factor0.95
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInline
Working Temp Range
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
EV-UMBRA-CORE-IP65-1500-EM-TRI
EV-UMBRA-CORE-IP65-1500-TRI
EV-UMBRA-CORE-IP65-600-TRI
-20 to 40 °C
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P0 to 40 °C

Lamp

Macadam Steps (SDCM)6-step MacAdam Ellipse
CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80
Lamp/LED Current
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
300 mA
EV-UMBRA-CORE-IP65-600-TRI350 mA
Lamp/LED voltage
EV-UMBRA-CORE-IP65-600-TRI44 V
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
99 V

LED Lifetime

LED Lifetime>72000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L80B10>72000 hrs>72000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours12000 hrs

Colour temperature

EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1200-TRI-F&P
20 Watts
4000 K2500 lm
5000 K2600 lm
6500 K2500 lm
32 Watts
4000 K4080 lm
5000 K4300 lm
6500 K4080 lm
EV-UMBRA-CORE-IP65-1500-EM-TRI
50 Watts
4000 K6100 lm
5000 K6600 lm
6500 K6150 lm
EV-UMBRA-CORE-IP65-1500-TRI
4000 K6100 lm
5000 K6600 lm
6500 K6150 lm
EV-UMBRA-CORE-IP65-600-TRI
9 Watts
4000 K1080 lm
5000 K1125 lm
6500 K1080 lm
17 Watts
4000 K2035 lm
5000 K2150 lm
6500 K1985 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring Type
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P
EV-UMBRA-CORE-IP65-1200-TRI-F&P
Re-wireable Flex & Plug (3 pin)
EV-UMBRA-CORE-IP65-1200-TRI
EV-UMBRA-CORE-IP65-1500-TRI
EV-UMBRA-CORE-IP65-600-TRI
Re-wireable terminal block (3 pin)
EV-UMBRA-CORE-IP65-1200-EM-TRI
EV-UMBRA-CORE-IP65-1500-EM-TRI
Re-wireable terminal block (4 pin)
Flex & Plug or Lead Length1700 mm
PSTLM0.1
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM0.4
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Emergency (EM suffix)

Replacement Battery Code18096
Emergency ClassificationC0:D40, C90:D20
Emergency Duration90 mins
Emergency Lumen Output250 lm
Emergency ModeCombined
Emergency Output Power2000 mW

Energy Savings Scheme

Ipart ApprovalYes
REES ApprovalYes
VEU ApprovalYes

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 60598.2.1
  • AS/NZS 60598.2.22

Warranty

Unexpected Error: strtoupper(): Argument #1 ($string) must be of type string, array give
Item CodeProduct HeightProduct LengthProduct Width
EV-UMBRA-CORE-IP65-1200-EM-TRI78 mm1207 mm91 mm
EV-UMBRA-CORE-IP65-1200-EM-TRI-F&P78 mm1207 mm91 mm
EV-UMBRA-CORE-IP65-1200-TRI78 mm1207 mm91 mm
EV-UMBRA-CORE-IP65-1200-TRI-F&P78 mm1207 mm91 mm
EV-UMBRA-CORE-IP65-1500-EM-TRI78 mm1507 mm91 mm
EV-UMBRA-CORE-IP65-1500-TRI78 mm1507 mm91 mm
EV-UMBRA-CORE-IP65-600-TRI78 mm607 mm91 mm
EV/UMBRA/CORE/IP65/1200/EM/TRI
EV/UMBRA/CORE/IP65/1200/TRI
EV/UMBRA/CORE/IP65/1500
EV/UMBRA/CORE/IP65/600/TRI
Order codeItem codeDescriptionAvailability
12139EV-UMBRA-CORE-IP65-1200-EM-TRIUMBRA CORE 1200mm LED Emergency Batten - Tri CCT
12132EV-UMBRA-CORE-IP65-1200-EM-TRI-F&PUMBRA CORE 36W 1200mm LED Emergency Batten - Tri CCT - F&P
12138EV-UMBRA-CORE-IP65-1200-TRIUMBRA CORE 1200mm LED Batten - Tri CCT
12131EV-UMBRA-CORE-IP65-1200-TRI-F&PUMBRA CORE 36W 1200mm LED Batten - Tri CCT - F&P
14502EV-UMBRA-CORE-IP65-1500-EM-TRIUMBRA CORE 50W 1500mm LED Emergency Batten - Tri CCT
14501EV-UMBRA-CORE-IP65-1500-TRIUMBRA CORE 50W 1500mm LED Batten - Tri CCT
12137EV-UMBRA-CORE-IP65-600-TRIUMBRA CORE 600mm LED Batten - Tri CCT

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
12130EV-UMBRA-CORE-CLIPSUmbra Core IP65 Stainless Steel 304 clips - Pack of 12
