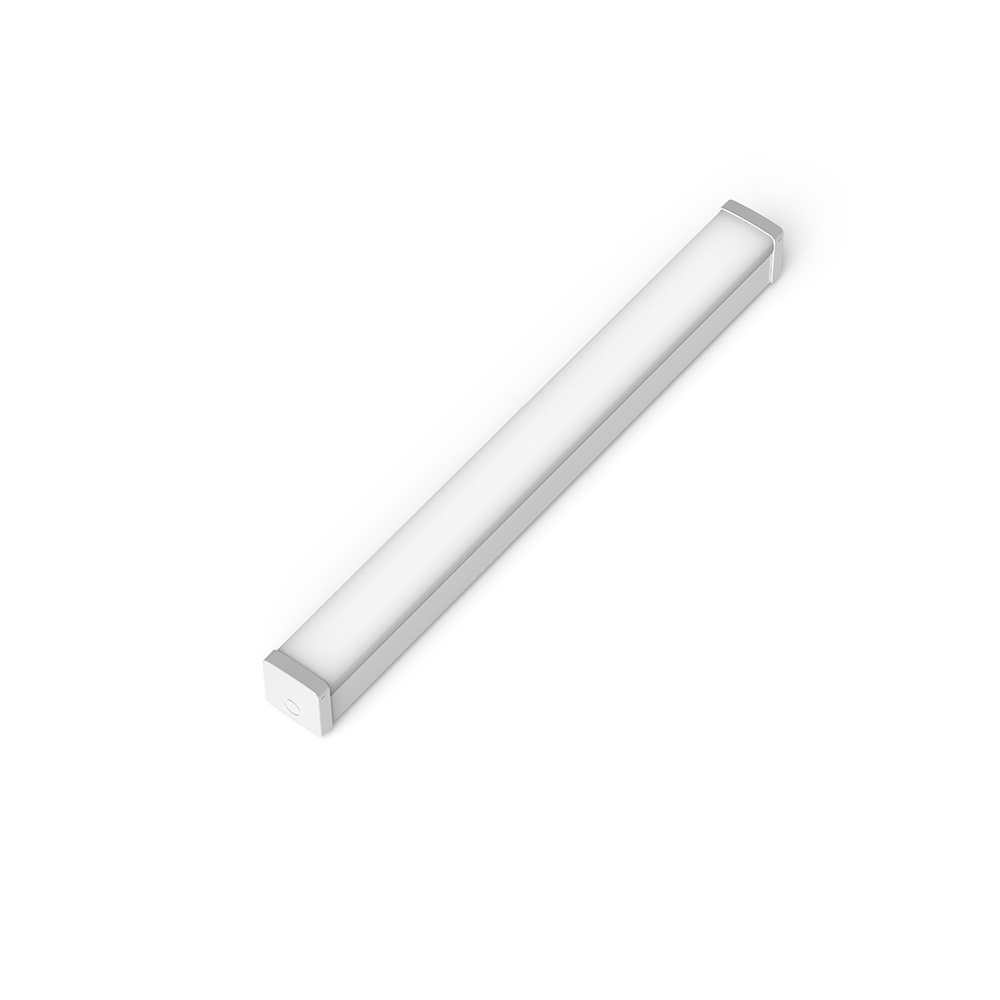

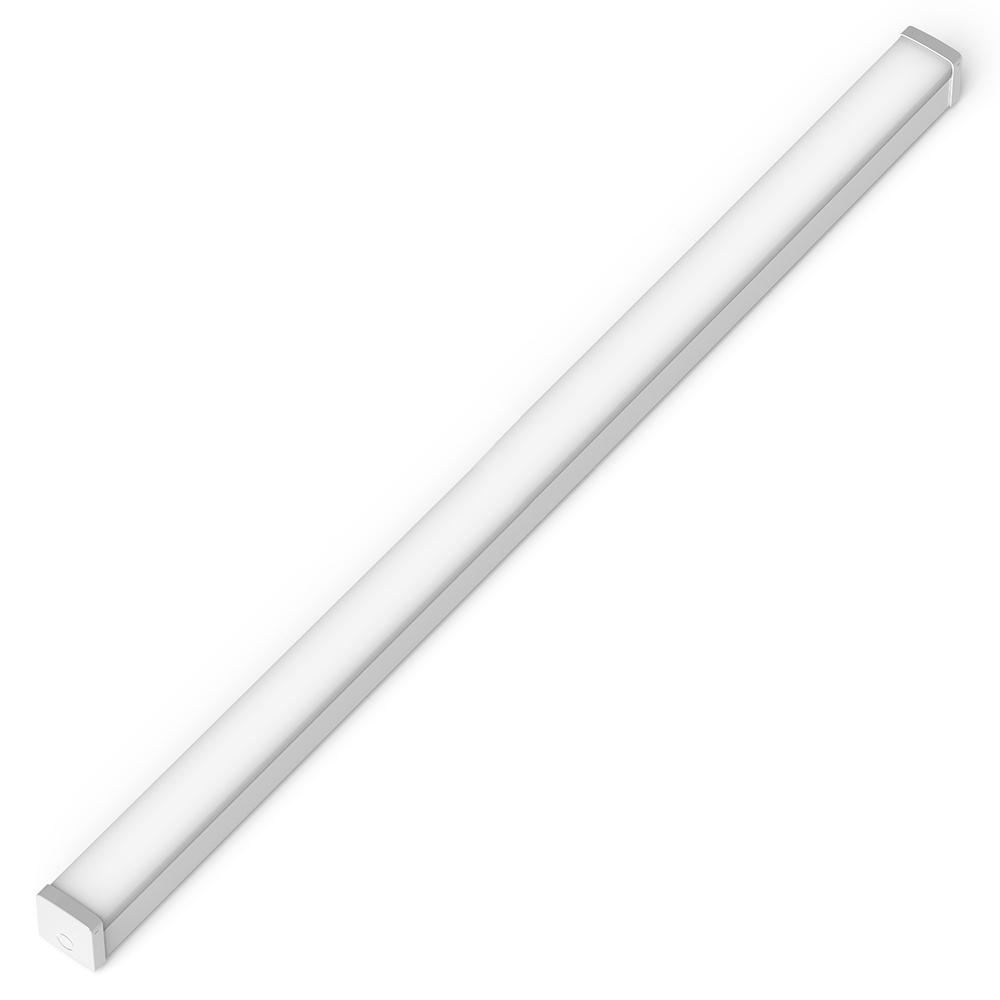

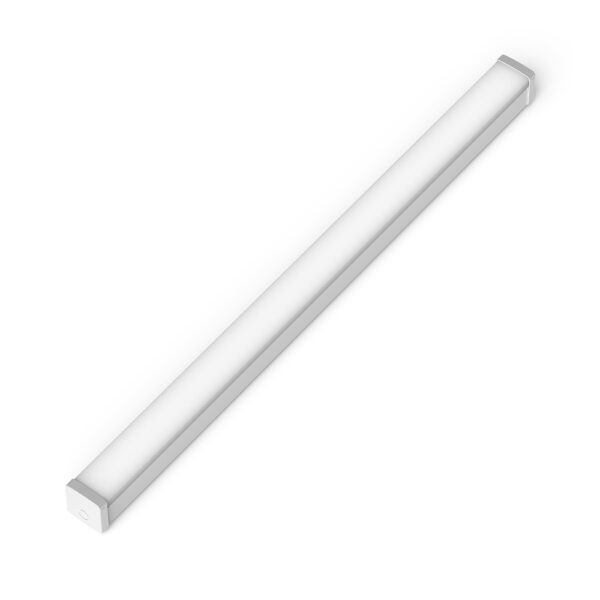

Umbra Core II Diffused

$0.00

Core II Diffused Batten, Power Selectable, Tri-CCT

  • Easy installation: new design makes it easy to install.
  • High Efficiency: up to 124lm/W for top energy savings.
  • Size Variety: Available in 600mm, 1200mm, 1500mm.
  • Customisable CCT: Select from 4000K, 5000K, 6500K.
  • Versatile Applications: EM and non-EM models available for all needs.
  • Simplified Setup: Large terminal block for easier wiring.
  • Impact Resilient: Built to withstand daily use.
  • 5-Year Warranty: Long-term reliability guaranteed.
SKU: Umbra Core II Diffused Category: Tags: , ,

Efficiencies

Total System Efficiency
EV-UMBRA-CORE-II-DIFF-600
EV-UMBRA-CORE-II-DIFF-600-EM
111 lm/W
EV-UMBRA-CORE-II-DIFF-1200
EV-UMBRA-CORE-II-DIFF-1200-EM
EV-UMBRA-CORE-II-DIFF-1500
EV-UMBRA-CORE-II-DIFF-1500-EM
124 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPowder coated steel
Diffuser MaterialPolycarbonate
Fitting ColourWhite
IK RatingIK08
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Current
EV-UMBRA-CORE-II-DIFF-600
EV-UMBRA-CORE-II-DIFF-600-EM
0.08 A
EV-UMBRA-CORE-II-DIFF-1200
EV-UMBRA-CORE-II-DIFF-1200-EM
0.16 A
EV-UMBRA-CORE-II-DIFF-1500
EV-UMBRA-CORE-II-DIFF-1500-EM
0.2 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-CORE-II-DIFF-600
EV-UMBRA-CORE-II-DIFF-600-EM
18 W
EV-UMBRA-CORE-II-DIFF-120033 W
EV-UMBRA-CORE-II-DIFF-1200-EM36 W
EV-UMBRA-CORE-II-DIFF-1500
EV-UMBRA-CORE-II-DIFF-1500-EM
50 W
Power Factor0.9
Switch TypeInline
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)5-step MacAdam Ellipse
CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80

LED Lifetime

LED Lifetime>60000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L90B1044000 hrs44000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours10000 hrs

Colour temperature

EV-UMBRA-CORE-II-DIFF-1200
18 Watts
4000 K2350 lm
5000 K2450 lm
6500 K2300 lm
33 Watts
4000 K3700 lm
5000 K4100 lm
6500 K3900 lm
EV-UMBRA-CORE-II-DIFF-1200-EM
18 Watts
4000 K2350 lm
5000 K2450 lm
6500 K2300 lm
36 Watts
4000 K3700 lm
5000 K4100 lm
6500 K3900 lm
EV-UMBRA-CORE-II-DIFF-1500
EV-UMBRA-CORE-II-DIFF-1500-EM
29 Watts
4000 K3500 lm
5000 K3700 lm
6500 K3600 lm
50 Watts
4000 K5700 lm
5000 K6200 lm
6500 K5800 lm
EV-UMBRA-CORE-II-DIFF-600
EV-UMBRA-CORE-II-DIFF-600-EM
9 Watts
4000 K1100 lm
5000 K1200 lm
6500 K1150 lm
18 Watts
4000 K1800 lm
5000 K2000 lm
6500 K1840 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring Type
EV-UMBRA-CORE-II-DIFF-1200
EV-UMBRA-CORE-II-DIFF-1500
EV-UMBRA-CORE-II-DIFF-600
Re-wireable terminal block (3 pin)
EV-UMBRA-CORE-II-DIFF-1200-EM
EV-UMBRA-CORE-II-DIFF-1500-EM
EV-UMBRA-CORE-II-DIFF-600-EM
Re-wireable terminal block (4 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D50, C90:D32
Emergency Duration90 mins
Emergency Lumen Output380 lm
Emergency ModeCombined
Emergency Output Power3000 mW

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS 60598.2.22
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Warranty Operating Hours15000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct HeightProduct LengthProduct Width
EV-UMBRA-CORE-II-DIFF-120074 mm1164 mm74 mm
EV-UMBRA-CORE-II-DIFF-1200-EM74 mm1164 mm74 mm
EV-UMBRA-CORE-II-DIFF-150074 mm1500 mm74 mm
EV-UMBRA-CORE-II-DIFF-1500-EM74 mm1500 mm74 mm
EV-UMBRA-CORE-II-DIFF-60074 mm603 mm74 mm
EV-UMBRA-CORE-II-DIFF-600-EM74 mm603 mm74 mm
EV/UMBRA/CORE/II/DIFF/1200
EV/UMBRA/CORE/II/DIFF/1500
EV/UMBRA/CORE/II/DIFF/600
Ordering codeItem codeDescriptionAvailability
11861EV-UMBRA-CORE-II-DIFF-1200Umbra Core 1200mm Diffused LED Batten - Tri-CCT
11864EV-UMBRA-CORE-II-DIFF-1200-EMUmbra Core 1200mm Diffused Emergency LED Batten - Tri-CCT
11862EV-UMBRA-CORE-II-DIFF-1500Umbra Core 1500mm Diffused LED Batten - Tri-CCT
11865EV-UMBRA-CORE-II-DIFF-1500-EMUmbra Core 1500mm Diffused Emergency LED Batten - Tri-CCT
11860EV-UMBRA-CORE-II-DIFF-600Umbra Core 600mm Diffused LED Batten - Tri-CCT
11863EV-UMBRA-CORE-II-DIFF-600-EMUmbra Core 600mm Diffused LED Emergency Batten - Tri-CCT
