Slimfire

Low Profile Emergency Luminaire

  • Compact design with IP44 front face
  • Custom LED lens design provides optimal light output and high mechanical protection
  • Non-maintained operation with D50 classification
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.5W)
  • Low profile design (<45mm) for installation into ceilings with low clearances
  • Long-life, high quality electronics made with precision SMT processes
  • High quality lithium battery (LiFePO4) and smart charger meets and exceeds relevant safety standards
  • Smart charger protects and extends battery life and minimises power consumption
  • Supports SafeTest – automated self-testing (AS2293/IEC62034)

Selected Models

  • 6 years design life at max. ambient temperature
  • Standalone (SPU)
  • 12 years design life at max. ambient temperature
  • Supports DALI-2 wired emergency testing
  • Supports Ektor Lynk wireless emergency testing
  • Includes easy-to-rewire junction box for DALI soft wiring leads
SKU: Slimfire Category:

Mechanical

IP RatingIP44 Front Face Only
IC RatingIC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Fitting Colour

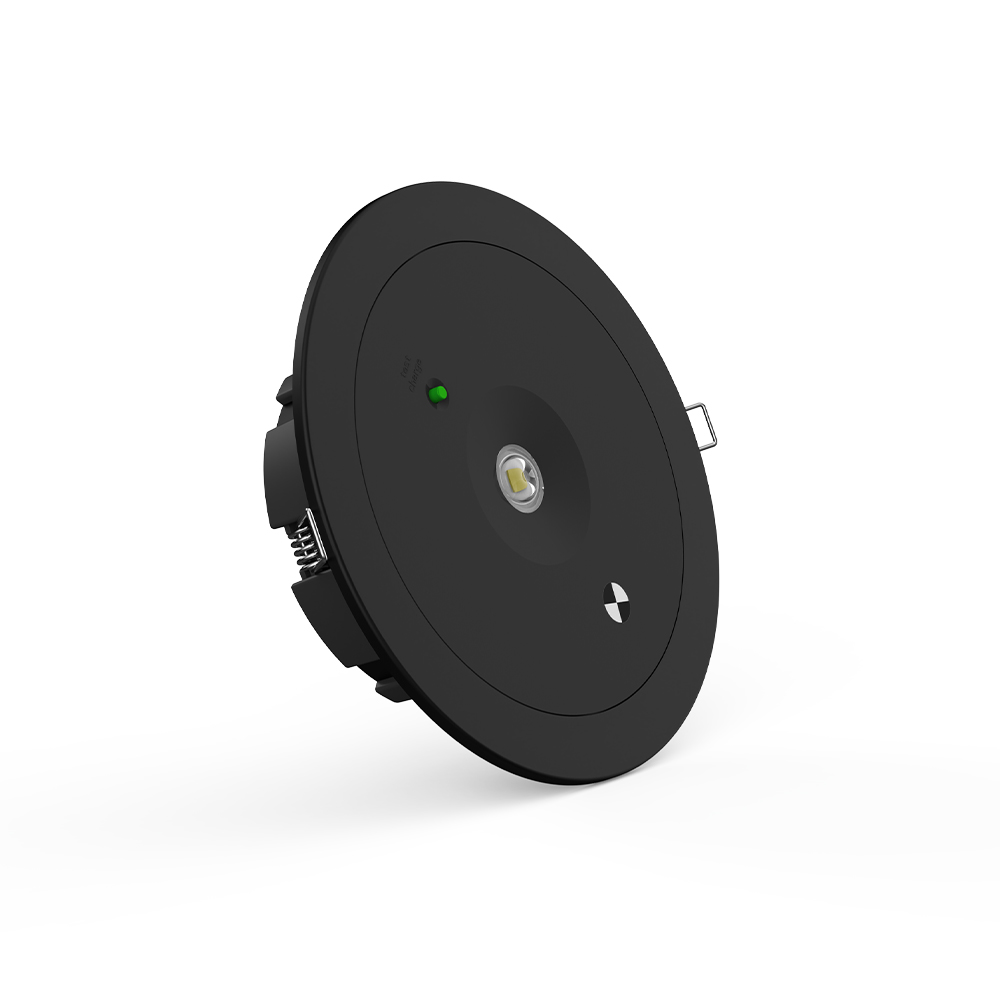

EV-SLIMFIRE-CORE-B
EV-SLIMFIRE-ONE-B		Black

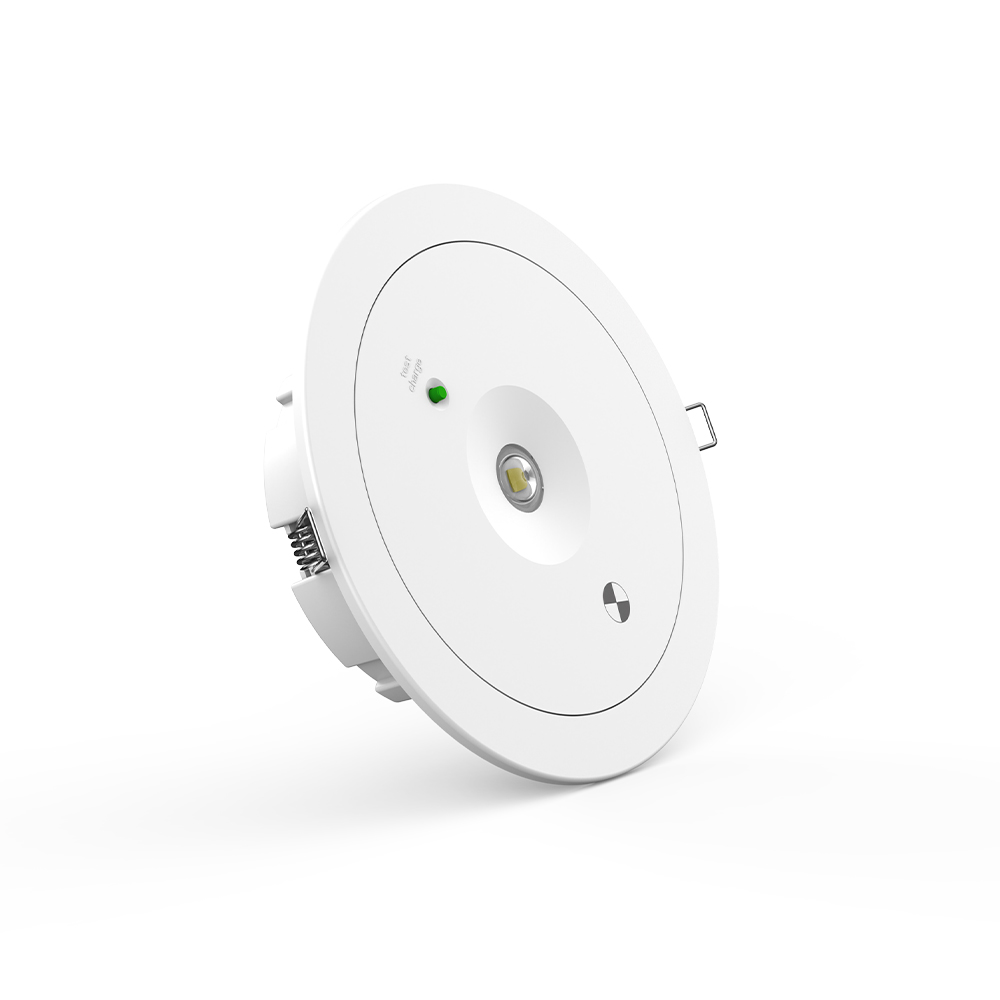

EV-SLIMFIRE-CORE
EV-SLIMFIRE-ONE		White
Body MaterialPolycarbonate
Installation TypeRecessed

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		1 W
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		1.7 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver Type
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		Fixed output
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		Lynk Wireless or DALI-2 with DT1
Driver IncludedYes
Integrated DriverYes
DimmableNo
Flex & Plug or Lead Length1200 mm
Wiring Type
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		Flex and Plug (2 pin) and Junction Box (4P)
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		Non rewireable Flex & Plug
Junction Box (4p) ~ The rewireable 4 pole junction box allows for the easy wiring of soft wiring DALI-2 looms when used with soft-wiring systems.

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency ClassificationC0:D50, C90:D50
Emergency Output Power
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		1800 mW
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		2250 mW
Replacement Battery Code
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		01308
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		18096
Emergency Duration90 mins
Emergency Lumen Output
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		264 lm
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		275 lm
Emergency Control
EV-SLIMFIRE-CORE
EV-SLIMFIRE-CORE-B		Ektor SafeTest (Automatic self-test)
EV-SLIMFIRE-ONE
EV-SLIMFIRE-ONE-B		Lynk Wireless or DALI-2

Compliance

Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS CISPR 15
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS 2293.3
  • AS/NZS 4268
Product Height45 mm
Cutout93 (inner), 75-130 (outer) mm
Product Diameter110 mm
EV/SLIMFIRE/CORE
EV/SLIMFIRE/ONE
Fixed output
Order codeItem codeDescriptionAvailability
11563EV-SLIMFIRE-CORESlimfire Core Low Profile - D50 - W/Safe Test
11564EV-SLIMFIRE-CORE-BSlimfire Core Low Profile - D50 - Black - W/Safe Test
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14855EV-SLIMFIRE-ONEEktor One Slimfire Low Profile - D50 - W/Wireless and DALI
14856EV-SLIMFIRE-ONE-BEktor One Slimfire Low Profile - D50 - Black - W/Wireless and DALI
