Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |

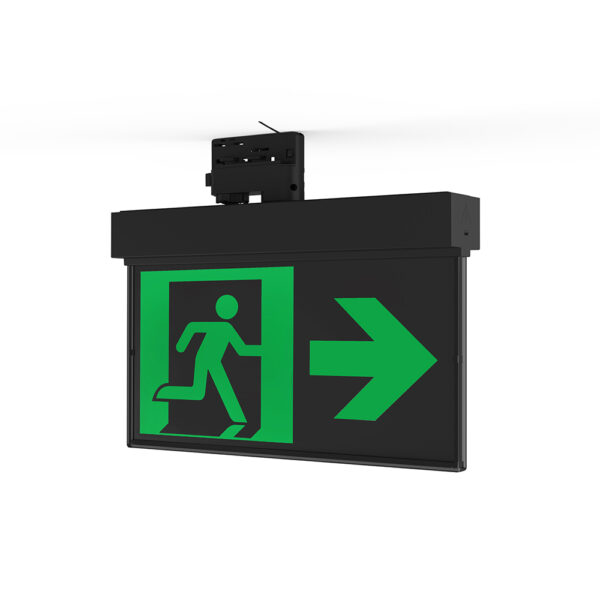

| EV-RAZOR-TK-ADV-B-LK EV-RAZOR-TK-CORE-B | Black |

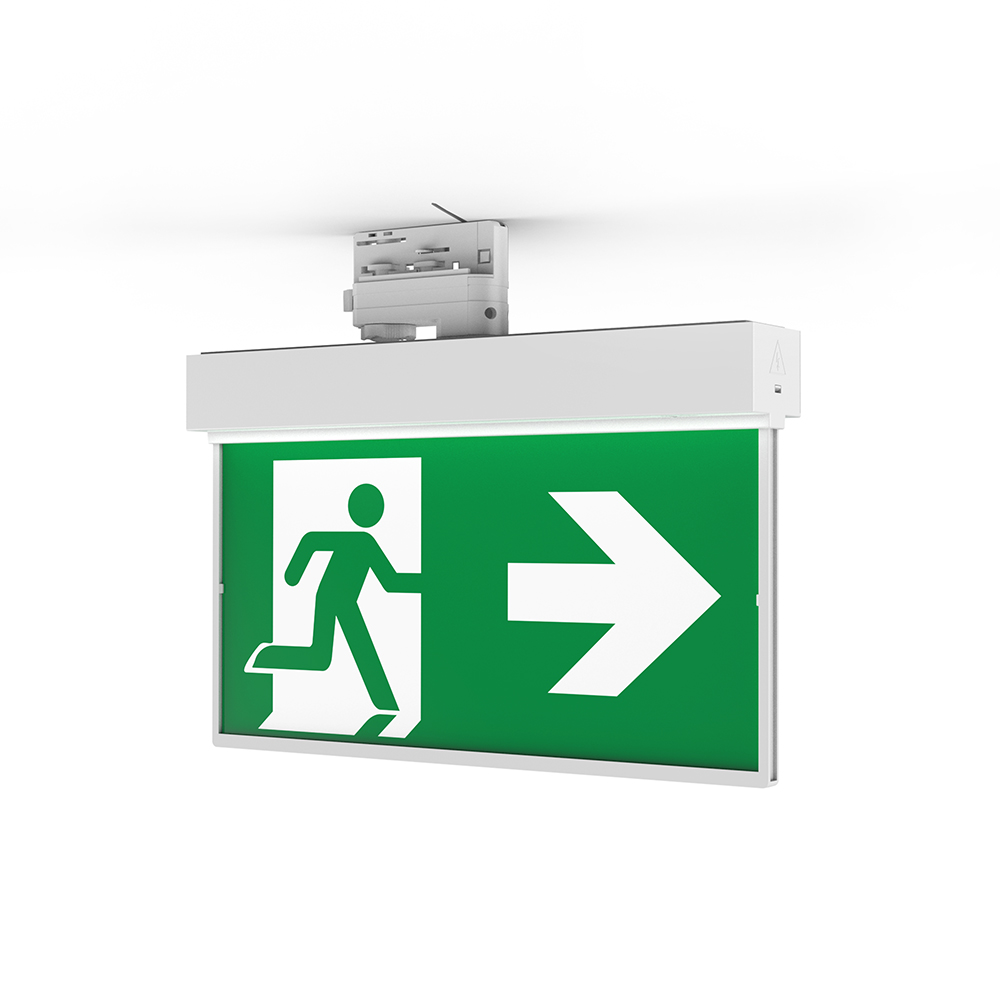

| EV-RAZOR-TK-ADV-LK EV-RAZOR-TK-CORE | White |
| Body Material | Polycarbonate |
| Diffuser Material | PMMA |
| Installation Type | Track mount |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| EV-RAZOR-TK-ADV-B-LK EV-RAZOR-TK-CORE-B | 2 W |
| EV-RAZOR-TK-ADV-LK EV-RAZOR-TK-CORE | 2.6 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Standby Power | |
| EV-RAZOR-TK-ADV-B-LK EV-RAZOR-TK-CORE-B | 1.7 W |
| EV-RAZOR-TK-ADV-LK EV-RAZOR-TK-CORE | 1.9 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Included | Yes |
|---|---|
| Integrated Driver | Yes |
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (5 pin) |
| Driver Type | Fixed output |
Emergency (EM suffix)
| Emergency Mode | Maintained |
|---|---|
| Emergency Output Power | |
| EV-RAZOR-TK-ADV-B-LK | 350 mW |
| EV-RAZOR-TK-ADV-LK | 650 mW |
| EV-RAZOR-TK-CORE EV-RAZOR-TK-CORE-B | 1000 mW |
| Replacement Battery Code | 13972 |
| Emergency Duration | 90 mins |
| Viewing Distance | 24 m |
| Decal Size | 300 x 150 mm |
| Emergency Control | IEC62386-104 (Wireless DT1) |
| IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202. | |
| Emergency Light Source Life | |
| EV-RAZOR-TK-ADV-LK | 34Y/04M |
| EV-RAZOR-TK-ADV-B-LK | 51Y/01M |
| EV-RAZOR-TK-CORE-B | 6Y/04M |
| EV-RAZOR-TK-CORE | 78Y/03M |
| AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign. | |
| Emergency Classification | |
| EV-RAZOR-TK-ADV-LK | C0:E6.3, C90:E10 |
| EV-RAZOR-TK-CORE | C0:E6.3, C90:E20 |
Compliance
| Product Design Life | 6 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Warranty | 5 Year Warranty, RTB |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Commercial Use Warranty | 5 RTB (Total 5 Years) |
