Razor Pro

$0.00

Razor Professional Recessed Emergency Exit, 16 & 24m

  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • Available in low illumination area black model
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Chain and rod mounting with Surface and Rod Mount Kit
  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Self test (AS2293/IEC62034)
  • Fully compliant (AS/NZS 2293)

Selected Models

  • DALI (IEC 62386-202) DT1
  • Ektor wired monitored system
  • Wireless meshing system
  • IEC 62386 over IEC 62386-104
  • Wireless monitoring via Ektor Lynk
SKU: Razor Pro Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting Colour
EV-RAZOR-16M-PRO-B
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-24M-PRO-B
EV-RAZOR-24M-PRO-B-LK
Black
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-LK
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-LK
White
Installation TypeRecessed
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.7 W
Standby Power1.7 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver Type
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-B
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-B
DALI DT1 Emergency
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-16M-PRO-LK
EV-RAZOR-24M-PRO-B-LK
EV-RAZOR-24M-PRO-LK
Wireless (IEC62386-104) with DT1
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency Classification
EV-RAZOR-24M-PRO-B"C0:E12.5, C90:E6.3"
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-LK
C0:C25, C90:C20
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-LK
C0:C40, C90:C32
EV-RAZOR-16M-PRO-B
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-24M-PRO-B-LK
C0:E12.5, C90:E6.3
Emergency Control
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-B
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-B
DALI Monitored (DT1)
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-16M-PRO-LK
EV-RAZOR-24M-PRO-B-LK
EV-RAZOR-24M-PRO-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Decal Size
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-B
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-16M-PRO-LK
200 x 100 mm
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-B
EV-RAZOR-24M-PRO-B-LK
EV-RAZOR-24M-PRO-LK
300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-LK
18Y/00M
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-LK
25Y/08M
EV-RAZOR-16M-PRO-B
EV-RAZOR-16M-PRO-B-LK
26Y/10M
EV-RAZOR-24M-PRO-B
EV-RAZOR-24M-PRO-B-LK
40Y/06M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Viewing Distance
EV-RAZOR-16M-PRO
EV-RAZOR-16M-PRO-B
EV-RAZOR-16M-PRO-B-LK
EV-RAZOR-16M-PRO-LK
16 m
EV-RAZOR-24M-PRO
EV-RAZOR-24M-PRO-B
EV-RAZOR-24M-PRO-B-LK
EV-RAZOR-24M-PRO-LK
24 m
Emergency Lumen Output
EV-RAZOR-24M-PRO-B33 lm
EV-RAZOR-24M-PRO120 lm
Emergency Output Power
EV-RAZOR-24M-PRO-B1350 mW
EV-RAZOR-24M-PRO1500 mW

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use24 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Item CodeMinimum Ceiling DepthCutoutProduct HeightProduct LengthProduct Width

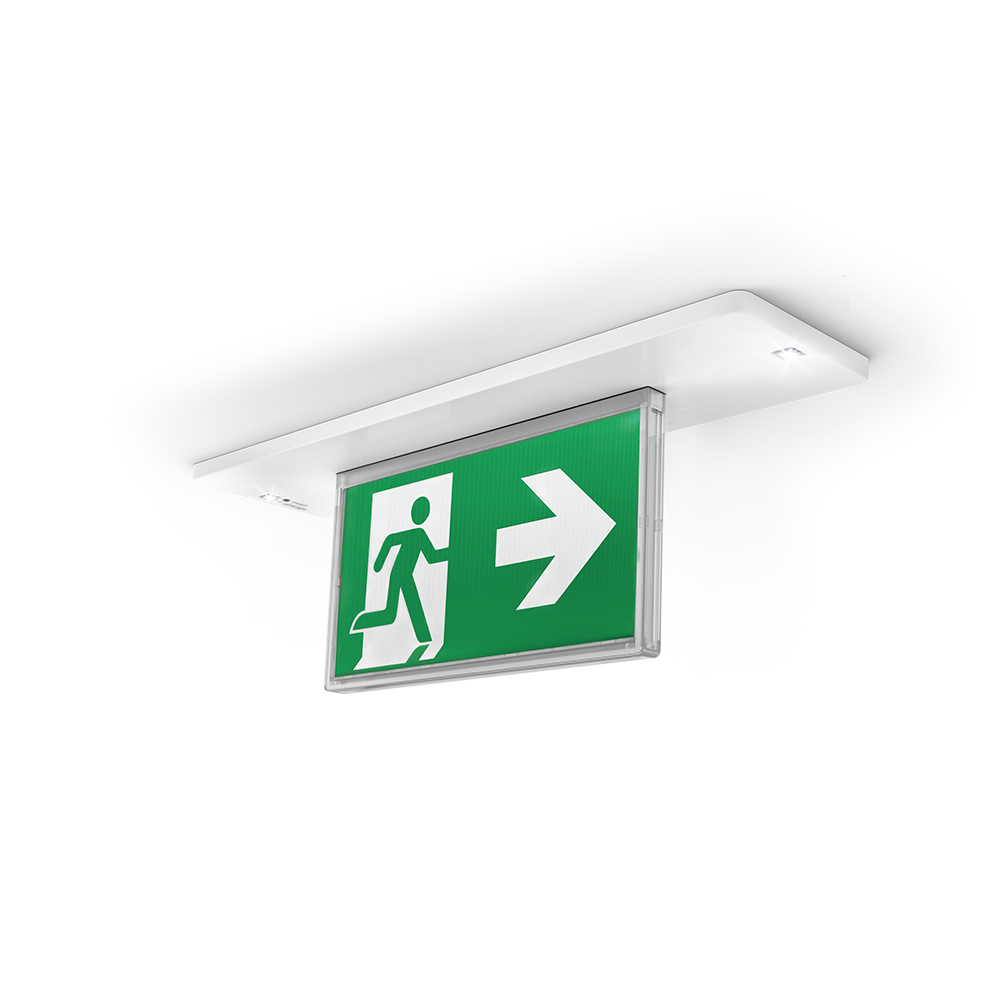

EV-RAZOR-16M-PRO100 mm305 x 65 mm210 mm365 mm95 mm

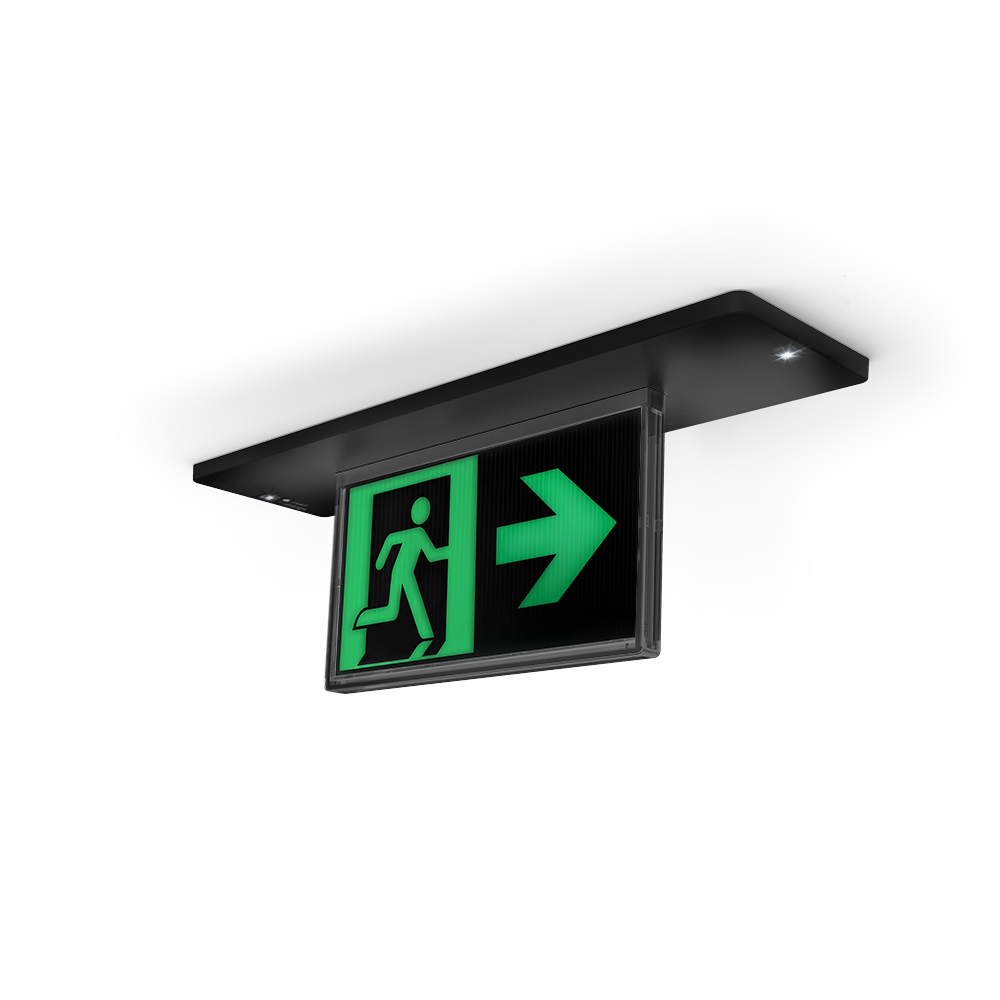

EV-RAZOR-16M-PRO-B100 mm305 x 65 mm210 mm365 mm95 mm
EV-RAZOR-16M-PRO-B-LK100 mm305 x 65 mm210 mm365 mm65 mm
EV-RAZOR-16M-PRO-LK100 mm305 x 65 mm210 mm365 mm65 mm

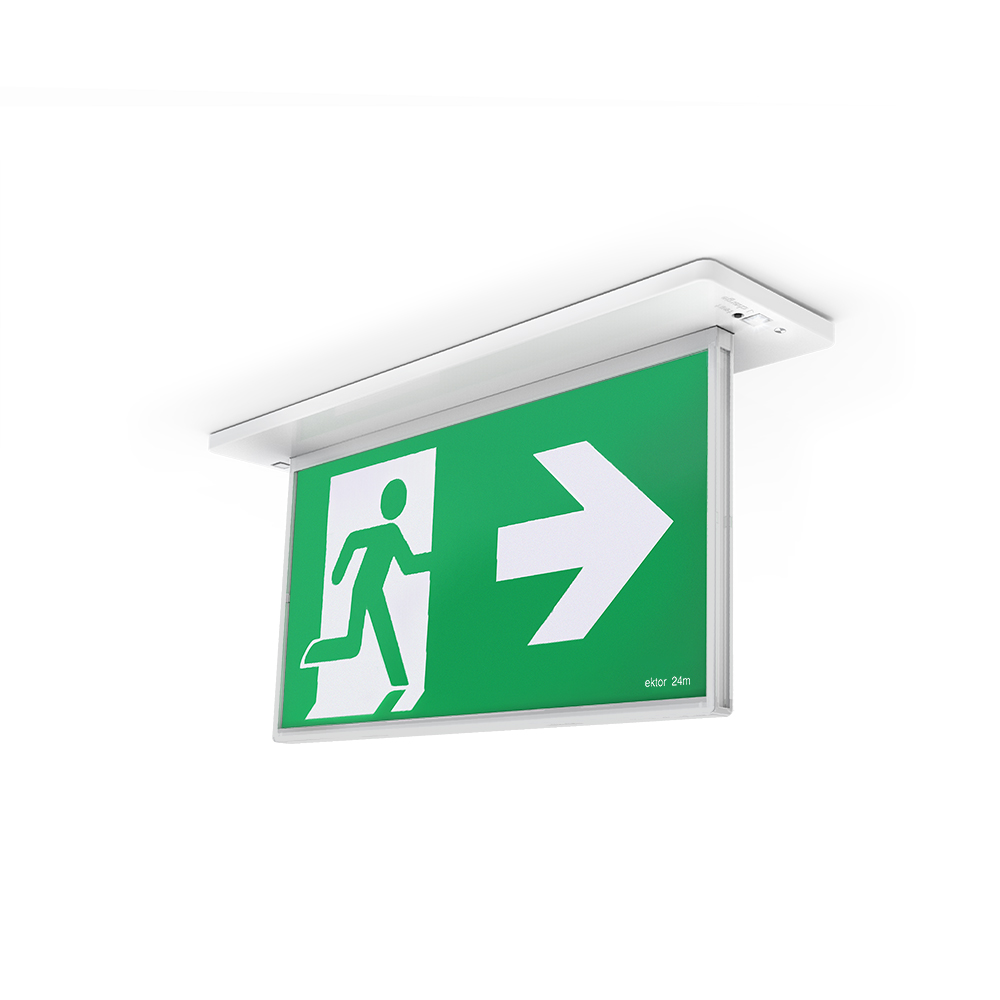

EV-RAZOR-24M-PRO100 mm305 x 65 mm265 mm365 mm95 mm

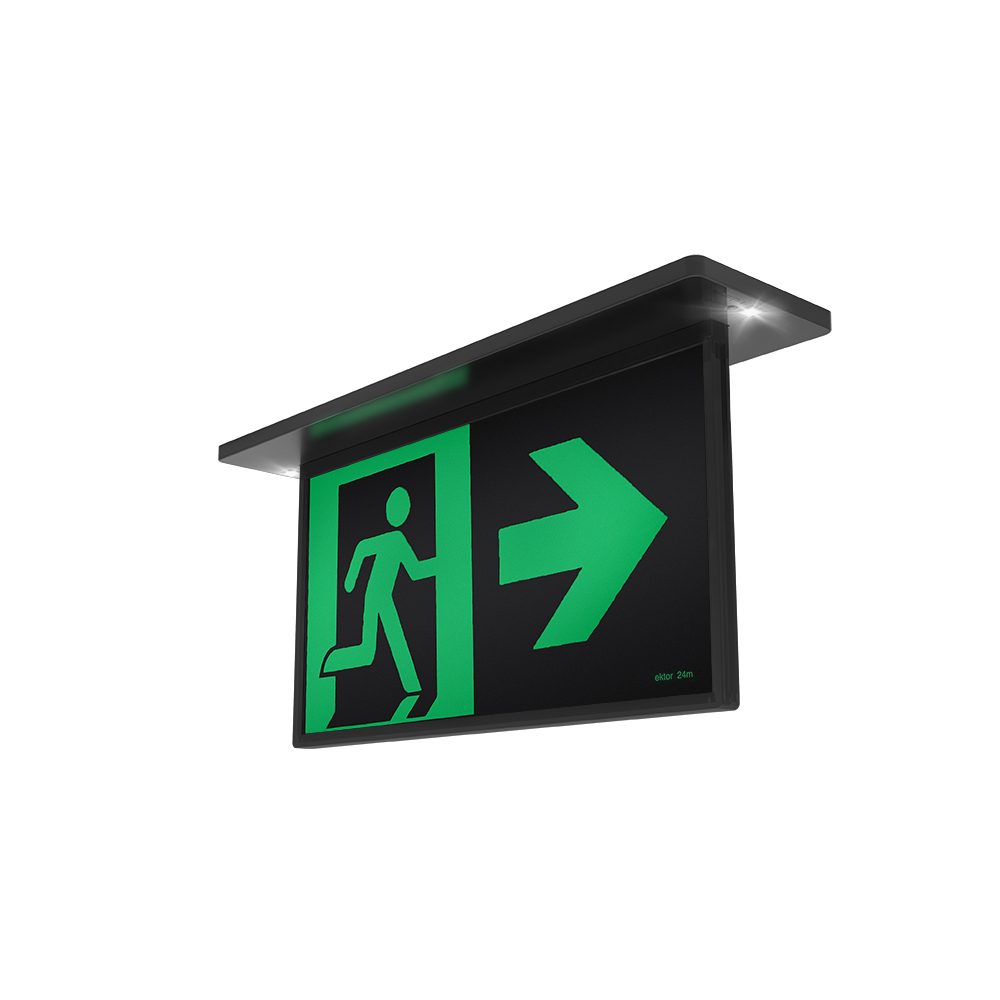

EV-RAZOR-24M-PRO-B100 mm305 x 65 mm265 mm365 mm95 mm

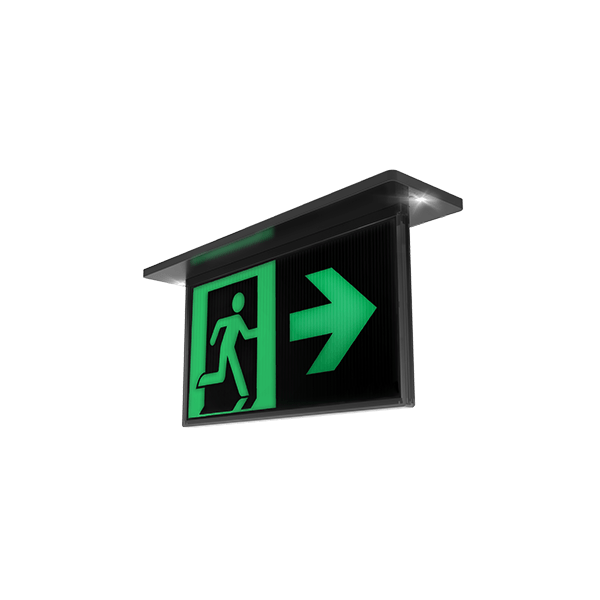

EV-RAZOR-24M-PRO-B-LK100 mm305 x 65 mm265 mm365 mm95 mm

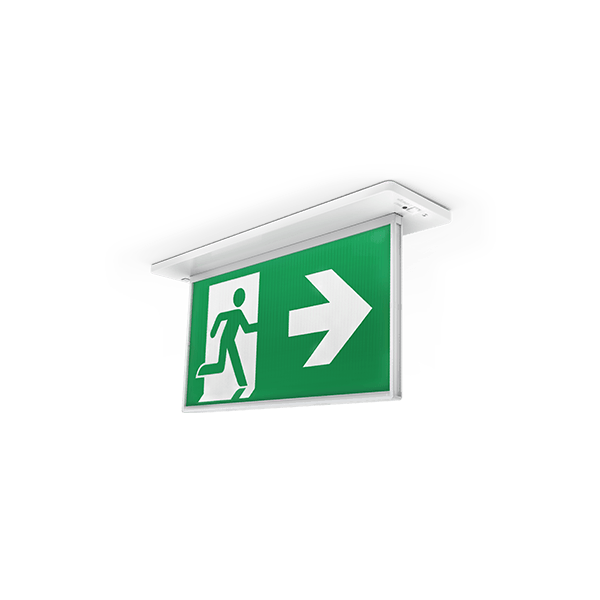

EV-RAZOR-24M-PRO-LK100 mm305 x 65 mm265 mm365 mm95 mm
EV/RAZOR/16M/PRO
EV/RAZOR/24M/PRO
EV/RAZOR/24M/PRO
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
02684EV-RAZOR-16M-PROEktor Razor Recessed EM edgelite Exit - 16M - PRO
02685EV-RAZOR-16M-PRO-BEktor Razor Recessed EM edgelite Exit - 16M - Black - PRO
02686EV-RAZOR-24M-PROEktor Razor Recessed Emergency Exit 24M Pro
02687EV-RAZOR-24M-PRO-BEktor Razor Recessed Emergency Exit 24M Black Pro
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
18067EV-RAZOR-16M-PRO-B-LKEktor Lynk Razor Recessed EM edgelit Exit - 16M - Black - PRO w/wireless
18066EV-RAZOR-16M-PRO-LKEktor Lynk Razor Recessed Emergency edgelite Exit - 16M - PRO w/wireless
18101EV-RAZOR-24M-PRO-B-LKEktor Lynk Razor Recessed EM edgelite Exit - 24M - Black - PRO w/wireless
18100EV-RAZOR-24M-PRO-LKEktor Lynk Razor Recessed Emergency edgelite Exit - 24M - PRO w/wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set - with Green Plug to suit GEN III ledfires
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI flex and plug with bootlaced ends
11967EV-DAUGHTERBOARD-LKEktor Lynk wireless daughterboard
11088EV-GEN-DALI-JBJunction box to suit Generation 3 Products
02989EV-RAZOR-16M-DIFFRazor 16M Diffuser
02990EV-RAZOR-16M-DIFF-BRazor 16M Diffuser - Black
02985EV-RAZOR-16M-DPRazor 16M decal pack to suit 02684
02986EV-RAZOR-16M-DP-BRazor 16M decal pack - Black to suit 02685
02991EV-RAZOR-24M-DIFFRazor 24M- replacement diffuser blade to suit 02686- including RM Decal pack
02992EV-RAZOR-24M-DIFF-BRazor 24M-replacement diffuser blade to suit 02687-including RM Decal pack-Black
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
02981EV-RAZOR-LEDFIRE-SM-KITSurface Mounted Kit to suit 2684- 2686- 2660- 2663- 2681- 2661 & 2677
02982EV-RAZOR-LEDFIRE-SM-KIT-BBlack Surface Mounted Kit to suit 2685- 2687- 2664 & 2665.
05302EV-RAZOR-PLATESteel Plate for Large Hole in Ceiling to suit 2684- 2686- 2660- 2661 & 2663.
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
00706EV-WAGO-2.4M-F&PWago 2.4M Plug 5-P Blue WAGO 51110475
00709EV-WIREDBYCLICK-2.4M-F&PWire By Click 2.4M 5-Pin Lead L1025/5
