Mechanical
| Body Material | Polycarbonate |
|---|---|
| Diffuser Material | PMMA |
| Fitting Colour | |

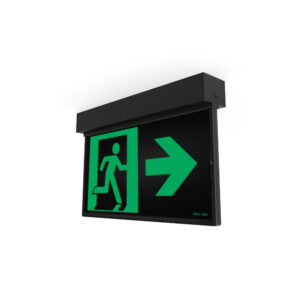

| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-B-DA-WBC | Black |

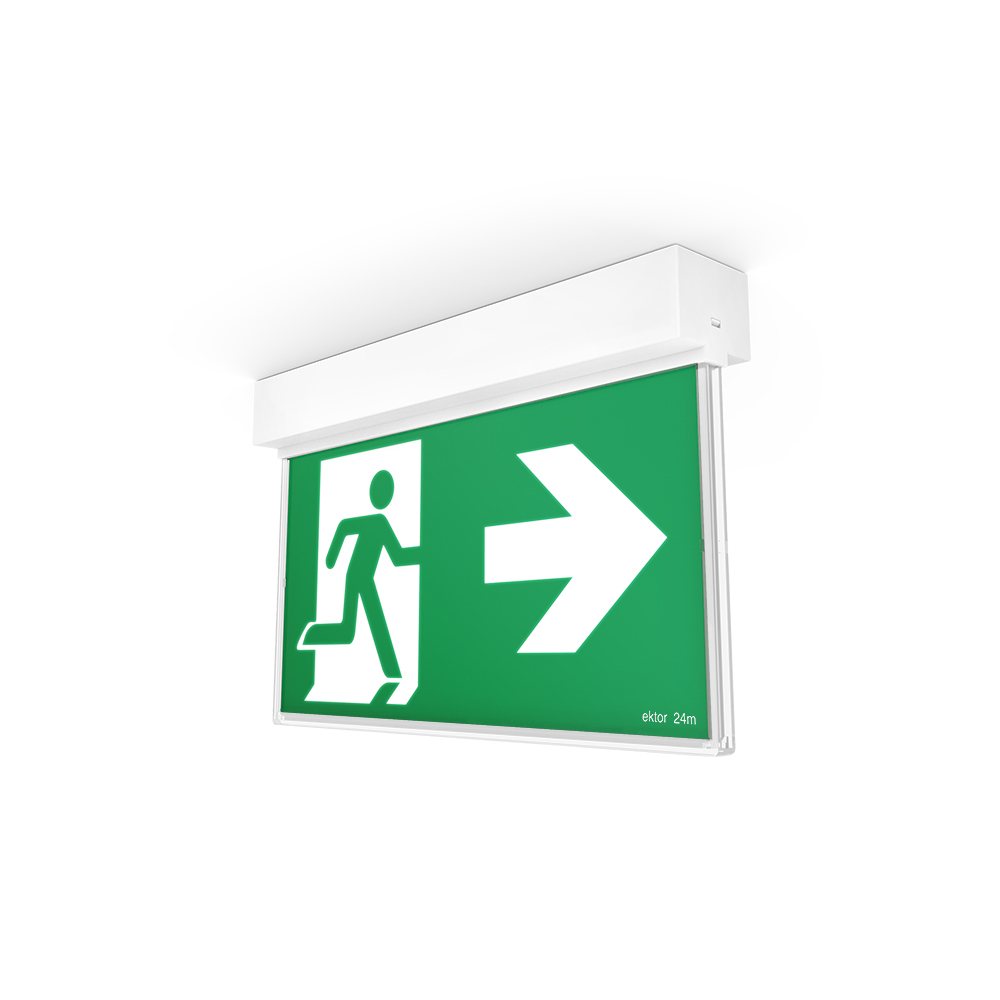

| EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-JB EV-RAZOR-ADV-24M-DA-WBC | White |
| Installation Type | Recessed |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-B-DA-WBC | 2 W |
| EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-JB EV-RAZOR-ADV-24M-DA-WBC | 2.6 W |
| Standby Power | |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-B-DA-WBC | 1.7 W |
| EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-JB EV-RAZOR-ADV-24M-DA-WBC | 2.3 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
| Working Temp Range | 0 to 40 °C |
Driver
| Driver Included | Yes |
|---|---|
| Integrated Driver | Yes |
| Driver Type | DALI DT1 Emergency |
| Flex & Plug or Lead Length | |
| EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-DA-JB | 650 mm |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-WBC EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-WBC | 2400 mm |
| Wiring Type | |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-DA-CMS | CMS Plug (5 pin) |
| EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-DA-JB | Re-wireable terminal block (5 pin) |
| EV-RAZOR-ADV-24M-B-DA-WBC EV-RAZOR-ADV-24M-DA-WBC | WBC Plug (5 pin) |
| WBC ~ Supplied with a Wire by click- 5 pin plug, model number LA1025/5
CMS ~ Supplied with a CMS Electracom- 5 pin plug to suit QF series wiring, model number QFP3AT | |
Emergency (EM suffix)
| Replacement Battery Code | 13972 |
|---|---|
| Emergency Control | DALI Monitored (DT1) |
| DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. | |
| Decal Size | 300 x 150 mm |
| Emergency Duration | 90 mins |
| Emergency Light Source Life | |
| EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-JB EV-RAZOR-ADV-24M-DA-WBC | 26Y/05M |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-B-DA-WBC | 34Y/04M |
| AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign. | |
| Emergency Mode | Maintained |
| Emergency Output Power | |
| EV-RAZOR-ADV-24M-B-DA-CMS EV-RAZOR-ADV-24M-B-DA-JB EV-RAZOR-ADV-24M-B-DA-WBC | 350 mW |
| EV-RAZOR-ADV-24M-DA-CMS EV-RAZOR-ADV-24M-DA-JB EV-RAZOR-ADV-24M-DA-WBC | 650 mW |
| Viewing Distance | 24 m |
| Emergency Classification | C0:E6.3, C90:E10 |
Compliance
| Product Design Life | 8 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Commercial Use Warranty | 6 RTB (Total 6 Years) |
|---|
