Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |

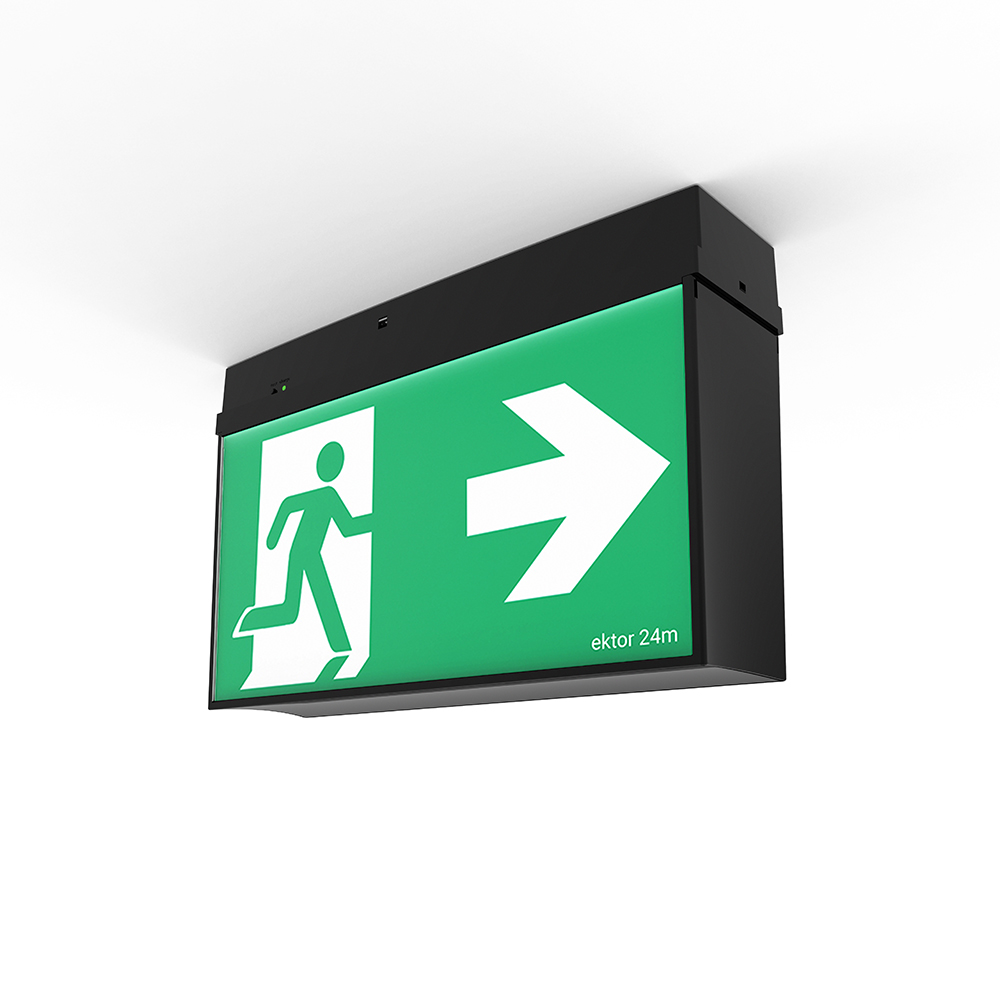

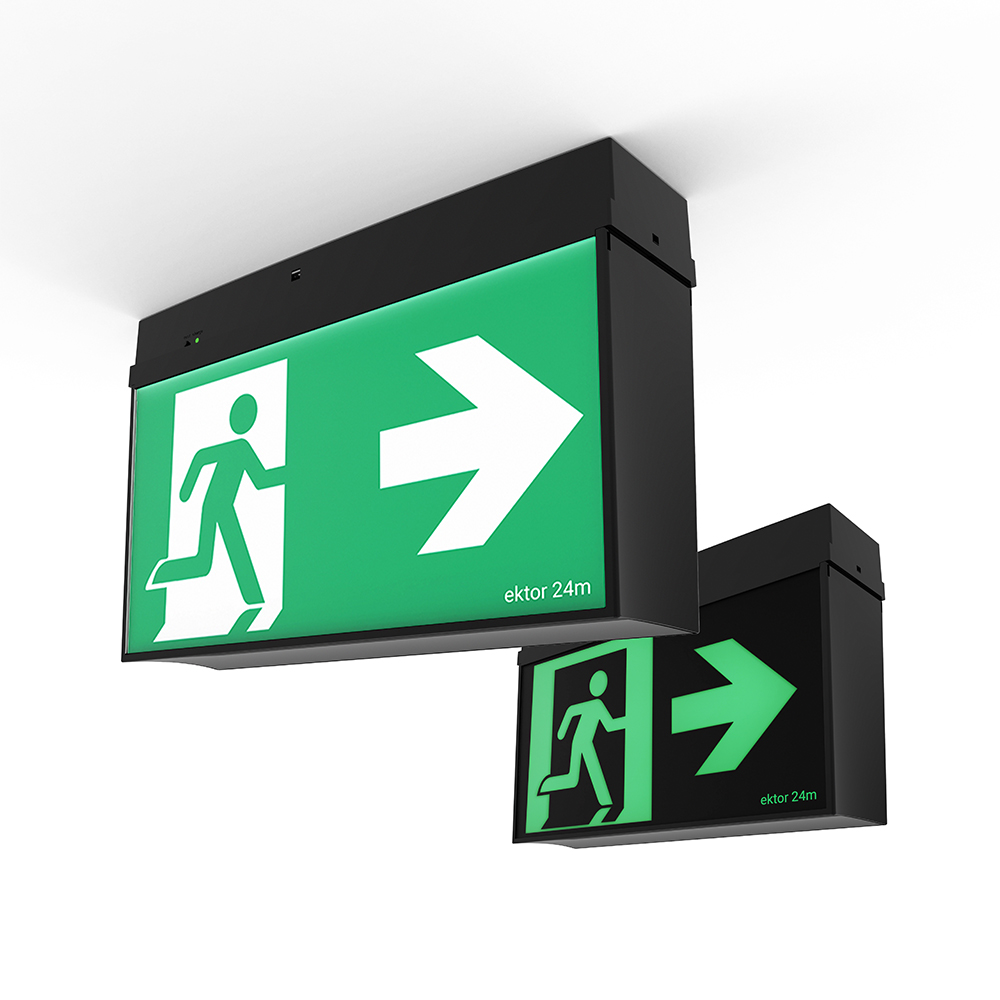

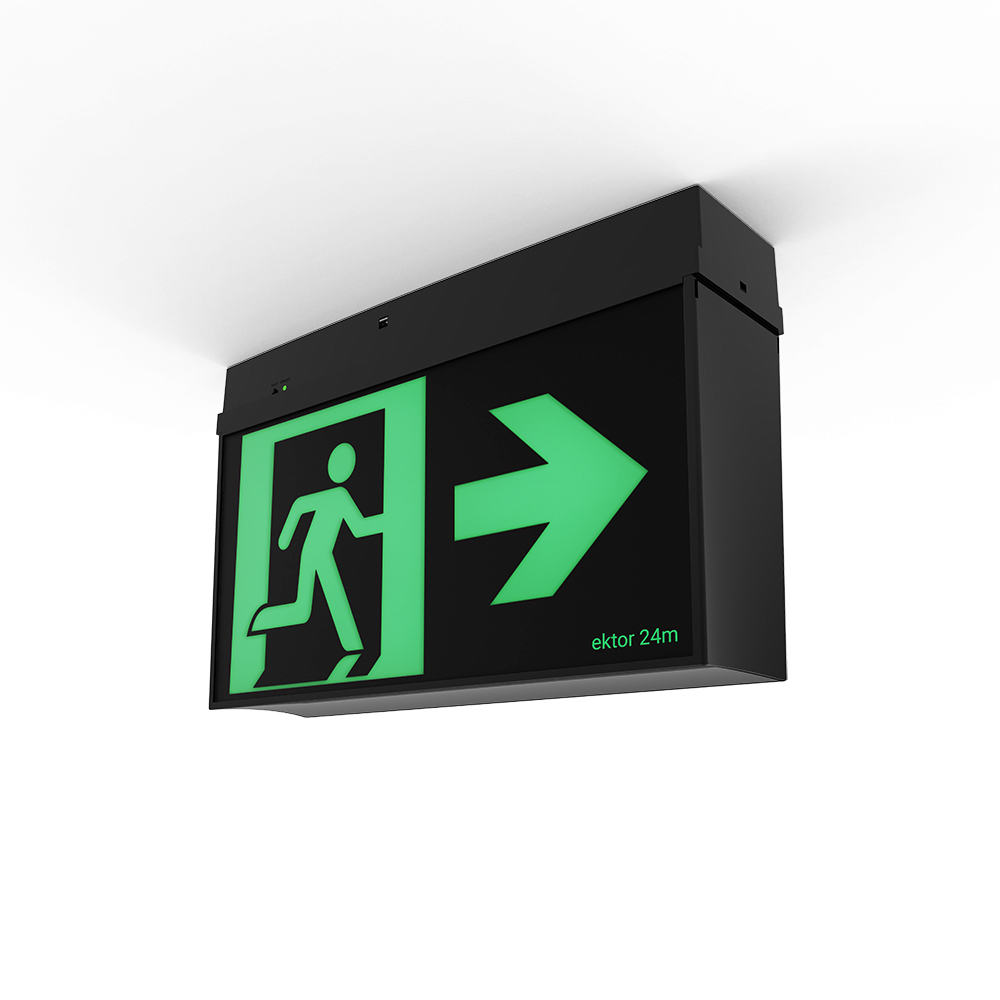

| EV-MERCURY-CORE-24M-B EV-MERCURY-ONE-24M-B | Black |

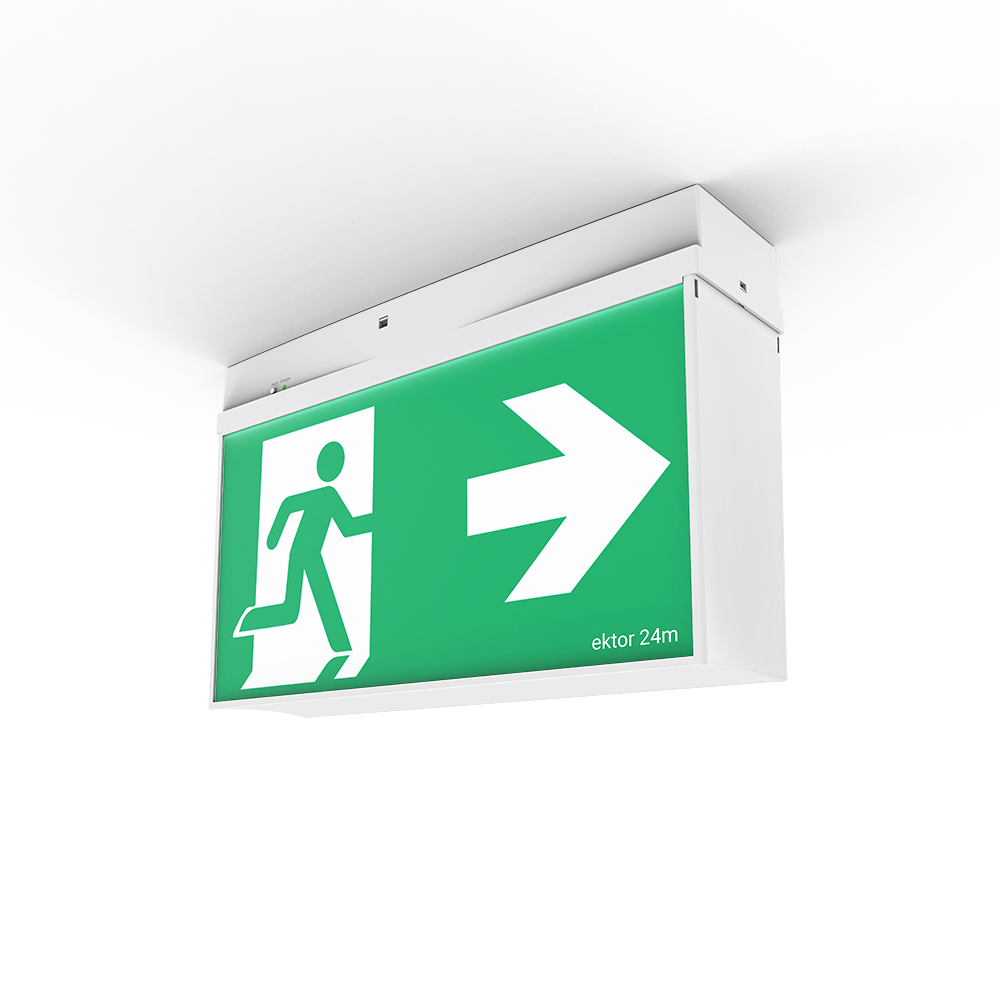

| EV-MERCURY-CORE EV-MERCURY-ONE-24M | White |
| Body Material | Polycarbonate |
| Diffuser Material | Polycarbonate |
| Installation Type | Wall or Ceiling |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| EV-MERCURY-CORE-24M-B | 1.6 W |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 2.5 W |
| EV-MERCURY-CORE | 3.5 W |
| Input voltage | |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 220-240VAC |
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | 230Vac |
| Standby Power | |
| EV-MERCURY-CORE-24M-B | 1.2 W |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 1.9 W |
| EV-MERCURY-CORE | 2.2 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Type | |
|---|---|
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | Fixed output |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | Lynk Wireless or DALI-2 with DT1 |
| Driver Included | Yes |
| Integrated Driver | Yes |
| Wiring Type | |
| EV-MERCURY-CORE | Re-wireable terminal block (3 pin) |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | Re-wireable terminal block (4 pin) |
Emergency (EM suffix)
| Emergency Mode | Maintained |
|---|---|
| Emergency Classification | |
| EV-MERCURY-CORE | C0:D3.2,C90:D3.2 |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | D6.3 |
| Emergency Output Power | 600 mW |
| Replacement Battery Code | |
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | 12425 |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 13972 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | 40 lm |
| Viewing Distance | 24 m |
| Decal Size | 300 x 150 mm |
| Emergency Control | |
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | Ektor SafeTest (Automatic self-test) |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | Lynk Wireless or DALI-2 |
| Emergency Light Source Life | 56Y/06M |
| AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign. | |
Compliance
| Product Design Life | |
|---|---|
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 12 years |
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | 6 years |
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Commercial Use Warranty | |
|---|---|
| EV-MERCURY-CORE EV-MERCURY-CORE-24M-B | 5 RTB (Total 5 Years) |
| EV-MERCURY-ONE-24M EV-MERCURY-ONE-24M-B | 8 RTB (Total 8 Years) |
