Mechanical
| IP Rating | IP20 |
|---|---|
| Fitting Colour | |

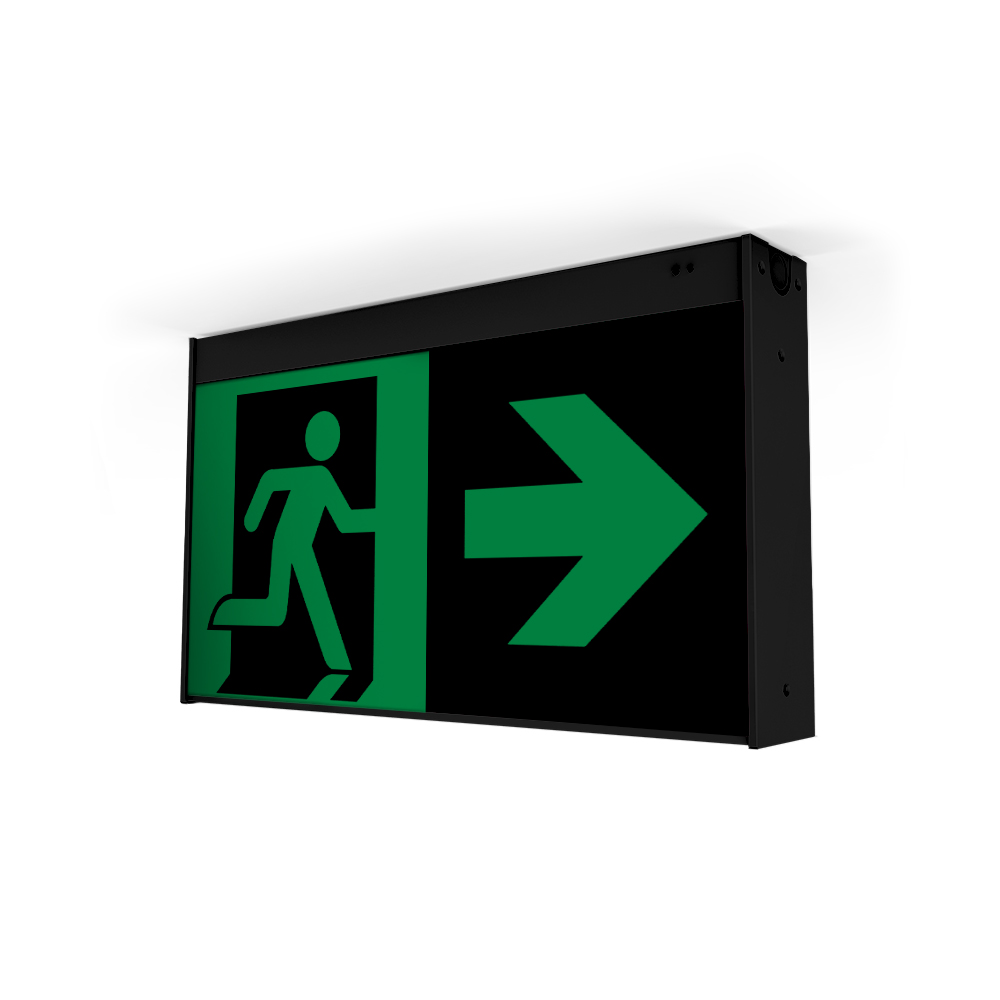

| EV-MERCURY-40M-PRO-B EV-MERCURY-ONE-40M-B | Black |

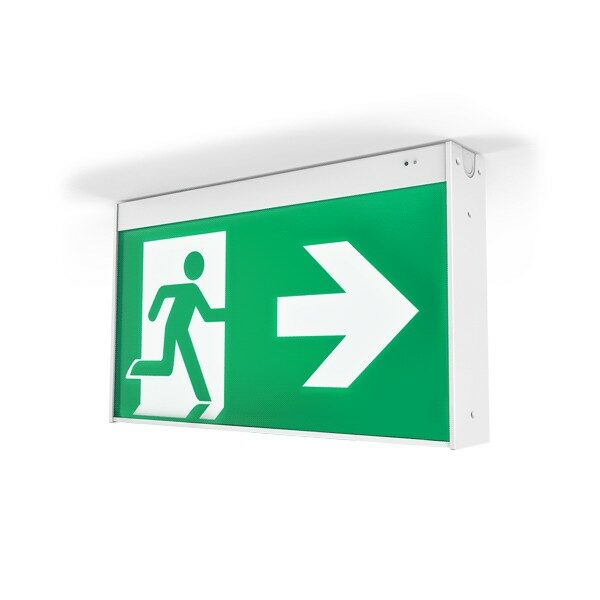

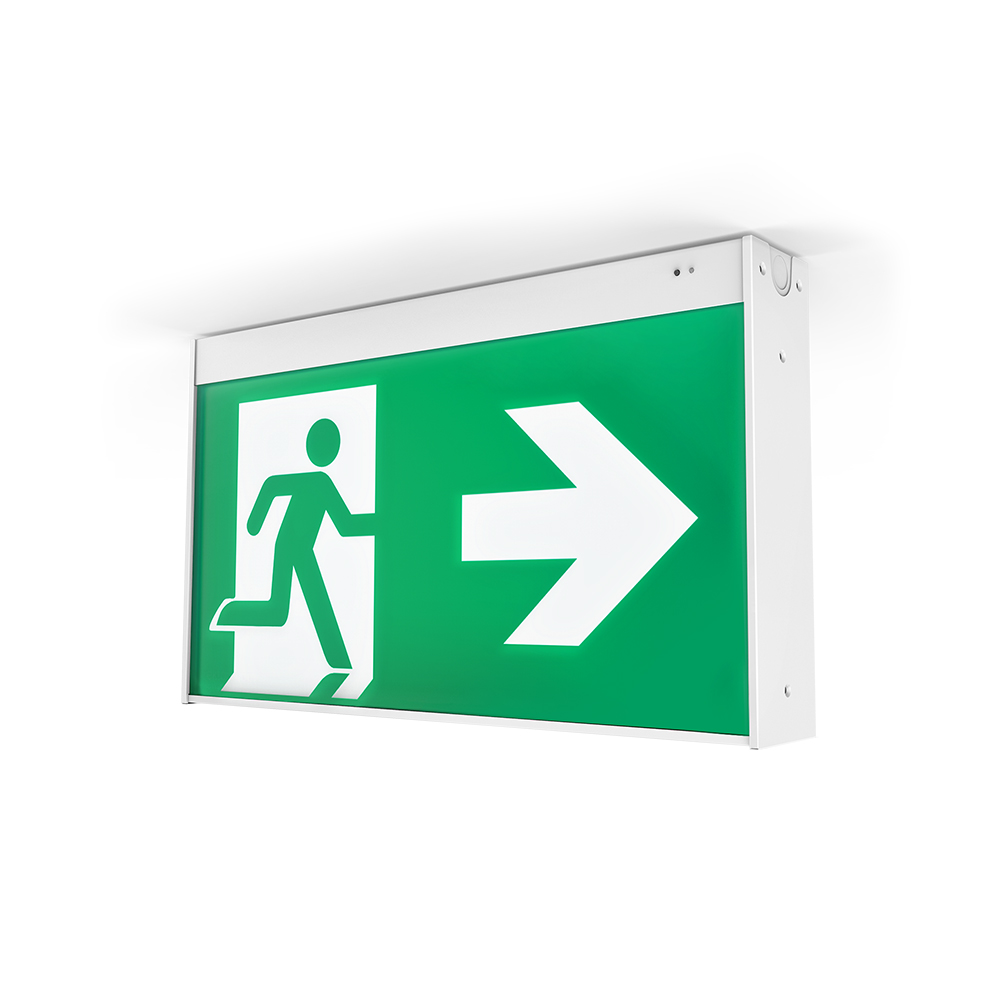

| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-LK EV-MERCURY-ONE-40M | White |
| Body Material | |
| EV-MERCURY-40M-BASIC | Powder coated Steel |
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-40M-PRO-LK EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | Powder coated steel |
| Diffuser Material | Polycarbonate |
| Installation Type | Wall or Ceiling |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | 4.5 W |
| Input voltage | |
| EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | 220-240VAC |
| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-40M-PRO-LK | 230Vac |
| Standby Power | |
| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | 2.5 W |
| EV-MERCURY-40M-PRO-LK | 3 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Colour temperature
| LED Wattage | 1.4 W |
|---|
Driver
| Driver Type | |
|---|---|
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B | DALI DT1 Emergency |
| EV-MERCURY-40M-BASIC | Fixed output |
| EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | Lynk Wireless or DALI-2 with DT1 |
| EV-MERCURY-40M-PRO-LK | Wireless (IEC62386-104) with DT1 |
| Driver Included | Yes |
| Dimmable | No |
| Wiring Type | |
| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO-LK | Re-wireable terminal block (3 pin) |
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | Re-wireable terminal block (5 pin) |
Emergency (EM suffix)
| Emergency Mode | Maintained |
|---|---|
| Emergency Classification | |
| EV-MERCURY-40M-PRO EV-MERCURY-ONE-40M | C0:D5, C90:E2.5 |
| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO-LK | C0:D6.3, C90:E4, C180:E4 |
| EV-MERCURY-ONE-40M-B | D6.3 |
| Emergency Output Power | 1400 mW |
| Replacement Battery Code | 01302 |
| Emergency Duration | 90 mins |
| Viewing Distance | 40 m |
| Decal Size | 500 x 250 mm |
| Emergency Light Source Life | |
| EV-MERCURY-40M-PRO-B | 07Y/02M |
| EV-MERCURY-40M-BASIC EV-MERCURY-40M-PRO-LK | >10Y/00M |
| EV-MERCURY-40M-PRO EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | >20Y/00M |
| AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign. | |
| Emergency Control | |
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B | DALI Monitored (DT1) |
| EV-MERCURY-40M-PRO-LK | IEC62386-104 (Wireless DT1) |
| EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | Lynk Wireless or DALI-2 |
| DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202. | |
Compliance
| Product Design Life | |
|---|---|
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-40M-PRO-LK EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | 12 years |
| EV-MERCURY-40M-BASIC | 6 years |
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Commercial Use Warranty | |
|---|---|
| EV-MERCURY-40M-BASIC | 5 RTB (Total 5 Years) |
| EV-MERCURY-40M-PRO EV-MERCURY-40M-PRO-B EV-MERCURY-40M-PRO-LK EV-MERCURY-ONE-40M EV-MERCURY-ONE-40M-B | 8 RTB (Total 8 Years) |
