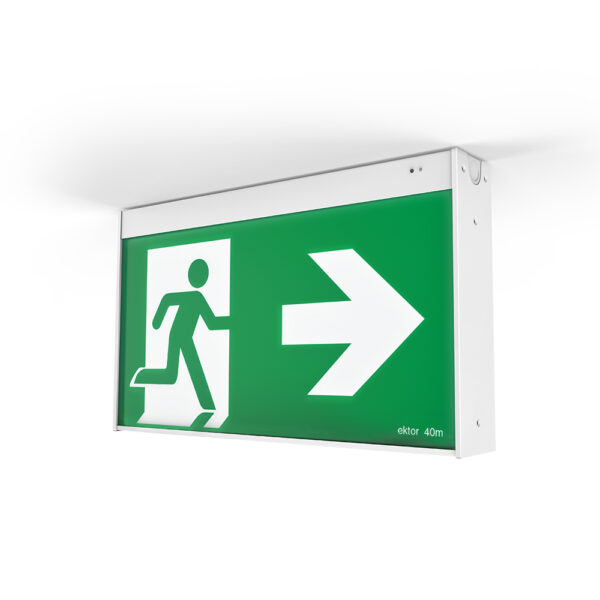

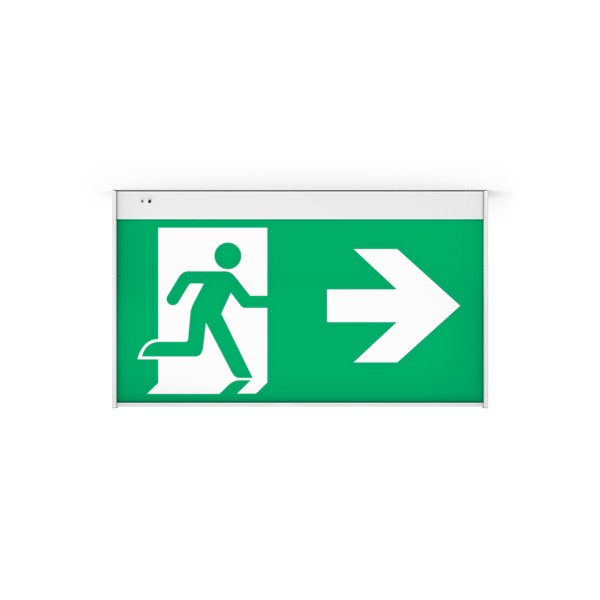

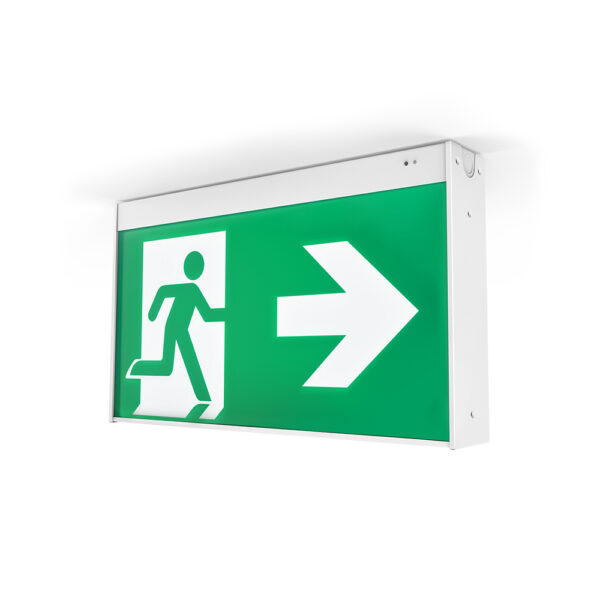

Mercury Jumbo Core

$0.00

Jumbo Core Emergency Exit, 40m

  • Large terminal blocks
  • Single and double sided decals
  • Fully compliant (AS/NZS 2293)
  • Non-maintained or maintained operation
  • Extended viewing distance with 500 x 250 mm decal
  • Wall, ceiling and rod mounting (with Rod Mount Kit)
  • Long life electronics
  • Low power consumption
  • 5 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Mercury Jumbo Core Category: Tags: , ,

Mechanical

Body MaterialPowder coated Steel
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeWall or Ceiling
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage4.5 W
Standby Power2.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Colour temperature

LED Wattage1.4 W

Driver

DimmableNo
Driver IncludedYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (3 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D6.3, C90:E4, C180:E4
Decal Size500 x 250 mm
Emergency Duration90 mins
Emergency Light Source Life>10Y/00M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power1400 mW
Viewing Distance40 m

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height301 mm
Product Length514 mm
Product Width78 mm
EV/MERCURY/40M/BASIC
Order codeItem codeDescriptionAvailability
11270EV-MERCURY-40M-BASICMercury Jumbo Emergency Exit- 40M Basic

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01999EV-MERCURY-40M-DPMercury Jumbo 40M decals
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
