Mechanical
| IP Rating | IP44 Front Face Only |
|---|---|
| Fitting Colour | |

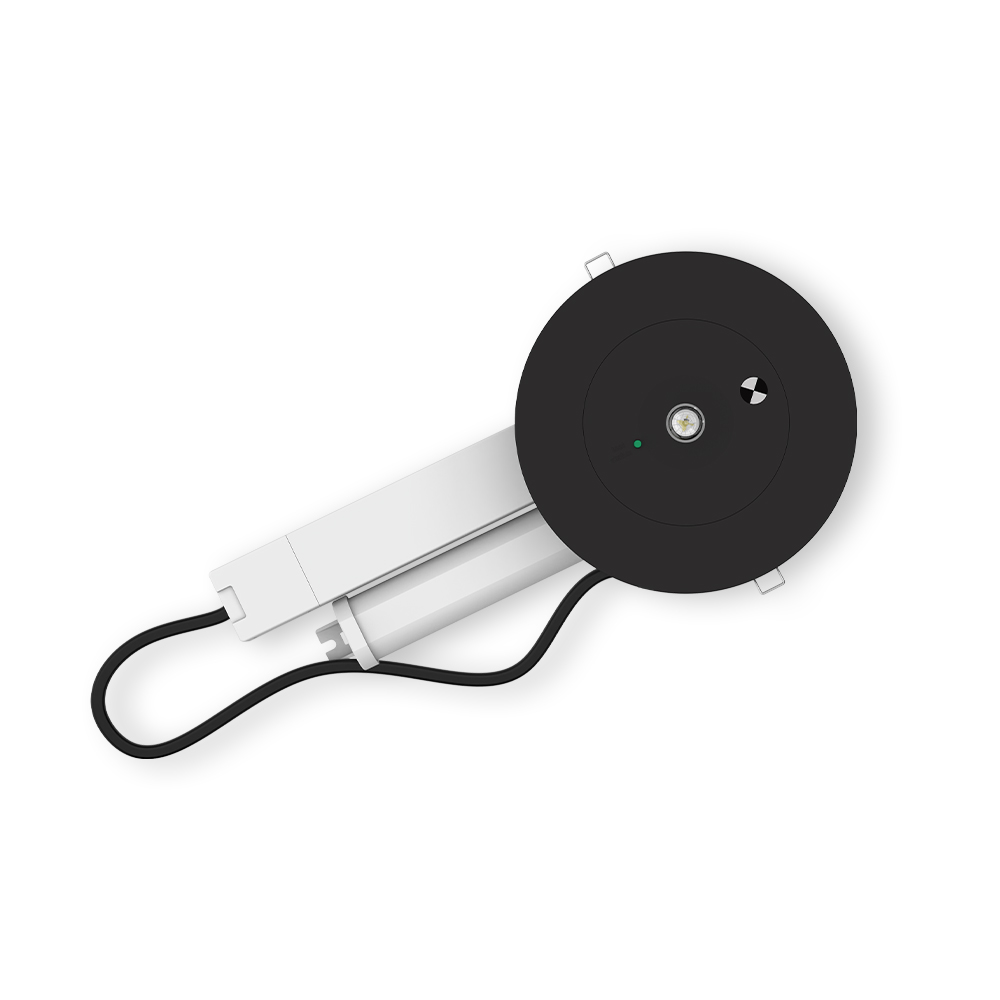

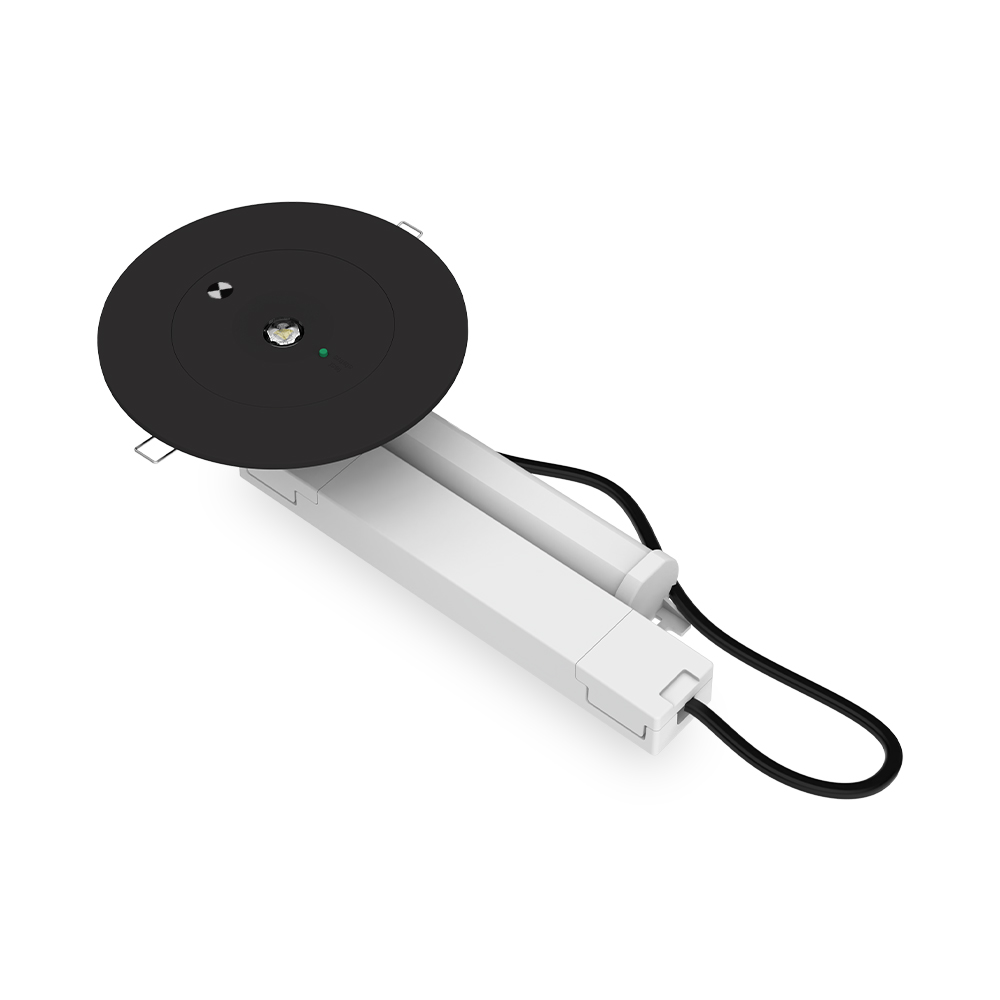

| EV-LEDFIRE-CORE-B EV-LEDFIRE-ONE-B | Black |

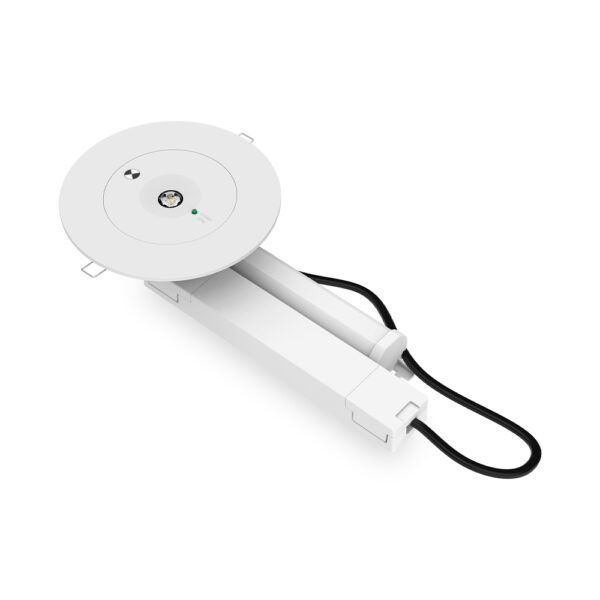

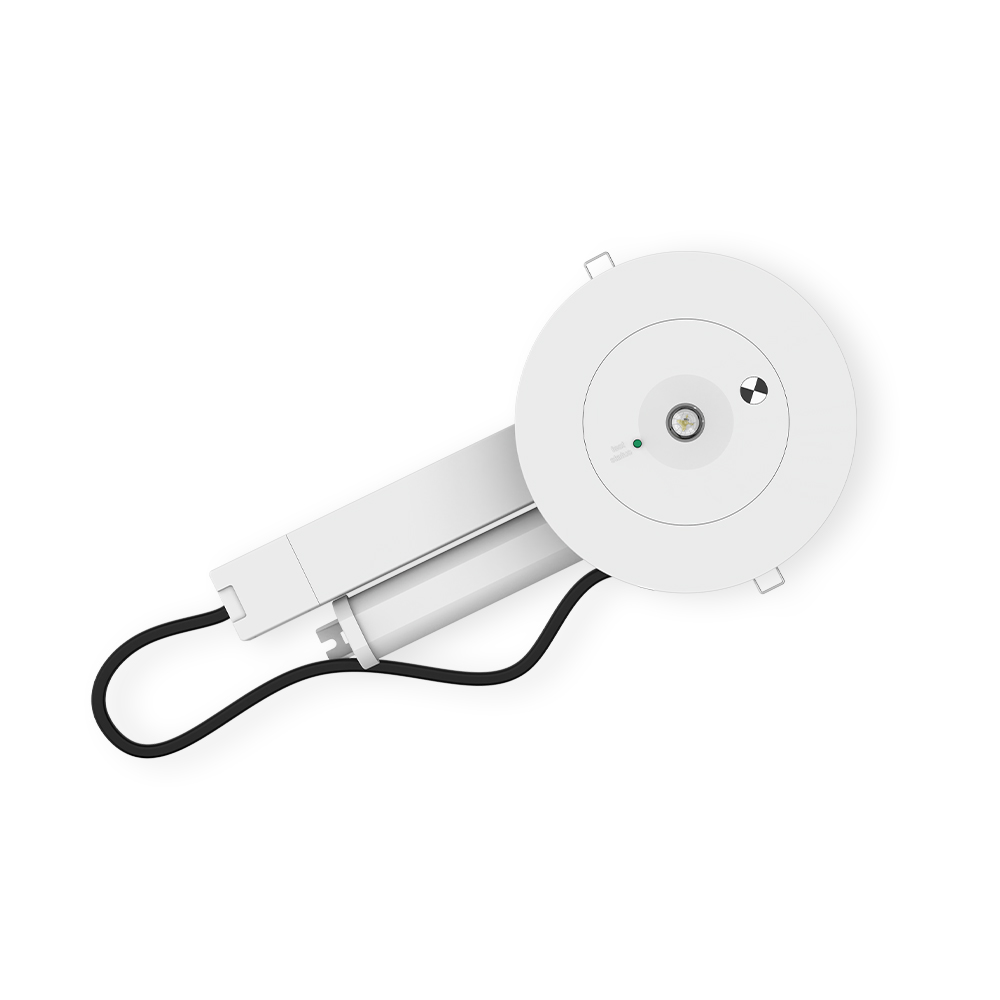

| EV-LEDFIRE-CORE EV-LEDFIRE-ONE | White |
| Body Material | Polycarbonate |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| EV-LEDFIRE-CORE-B | 1.6 W |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 2 W |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 2.5 W |
| Input voltage | |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 220-240VAC |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 220-240Vac |
| EV-LEDFIRE-CORE-B | 230Vac |
| Standby Power | |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 0.25 W |
| EV-LEDFIRE-CORE-B | 0.45 W |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 1 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Type | |
|---|---|
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | Fixed output |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | Lynk Wireless or DALI-2 with DT1 |
| Driver Included | Yes |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | Flex and Plug (2 pin) and Junction Box (4P) |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | Re-wireable Flex & Plug (2 pin) |
| Junction Box (4p) ~ The rewireable 4 pole junction box allows for the easy wiring of soft wiring DALI-2 looms when used with soft-wiring systems. | |
Emergency (EM suffix)
| Emergency Mode | Non-Maintained |
|---|---|
| Emergency Classification | |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | C0:D100, C90:D100 |
| EV-LEDFIRE-CORE-B | C0:D50, C90:D50 |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | C0:D80, C90:D80 |
| Emergency Output Power | |
| EV-LEDFIRE-CORE-B | 1500 mW |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 2900 mW |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 3800 mW |
| Replacement Battery Code | |
| EV-LEDFIRE-CORE-B | 01300 |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 53023 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | |
| EV-LEDFIRE-CORE-B | 250 lm |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 330 lm |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 400 lm |
| Emergency Control | |
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | Ektor SafeTest (Automatic self-test) |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | Lynk Wireless or DALI-2 |
Compliance
| Product Design Life | 6 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Warranty | |
|---|---|
| EV-LEDFIRE-CORE EV-LEDFIRE-CORE-B | 5 Year Warranty, RTB |
| EV-LEDFIRE-ONE EV-LEDFIRE-ONE-B | 8 Year Warranty, RTB |
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Commercial Use Warranty | 5 RTB (Total 5 Years) |
