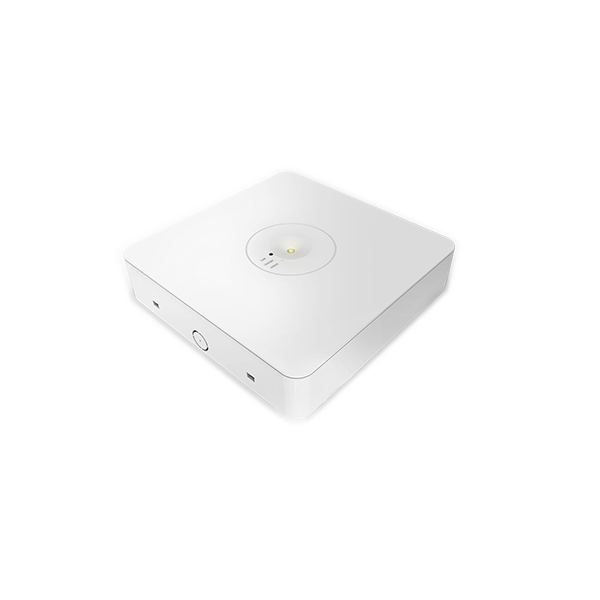

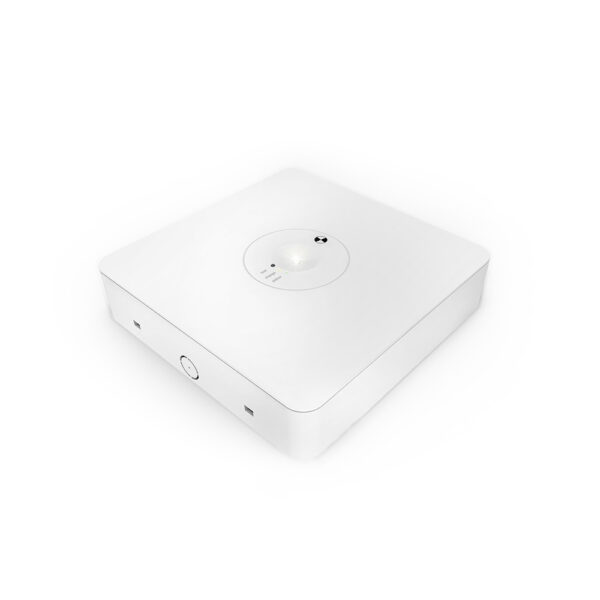

Ledfire SM

Surface Mounted Emergency Luminaire

  • High quality lithium battery (LiFePO4) and smart charger meets and exceeds relevant safety standards
  • Smart charger protects and extends battery life and minimises power consumption

Selected Models

  • Non-maintained operation with D63 classification
  • Fully compliant (AS/NZS 2293)
  • Weatherproof IP65 rating
  • Low energy consumption (avg. 0.4W)

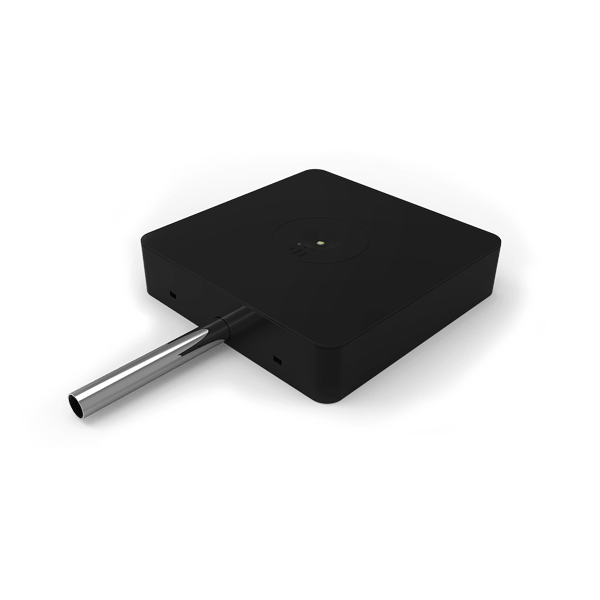

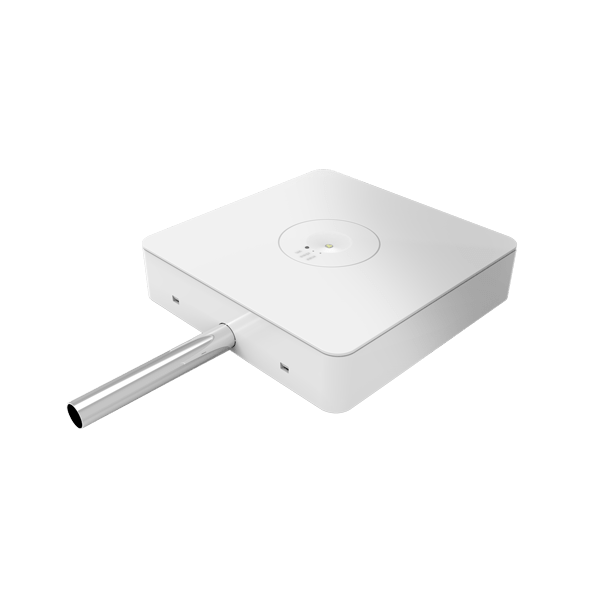

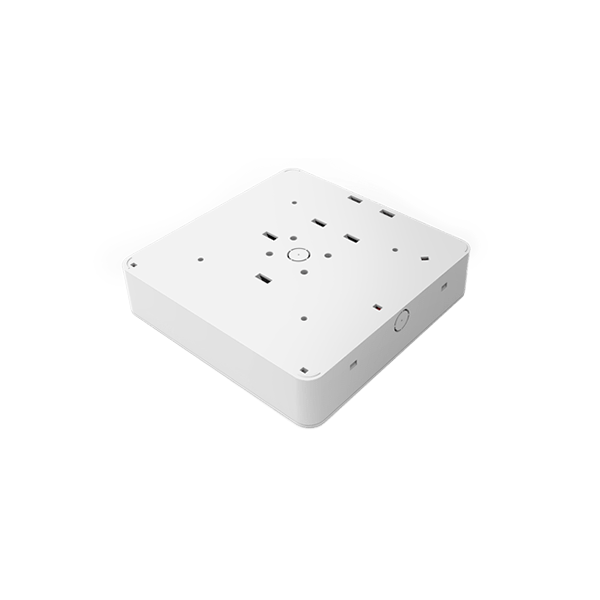

  • Wall and ceiling mounting – rod mounting with rod mount kit

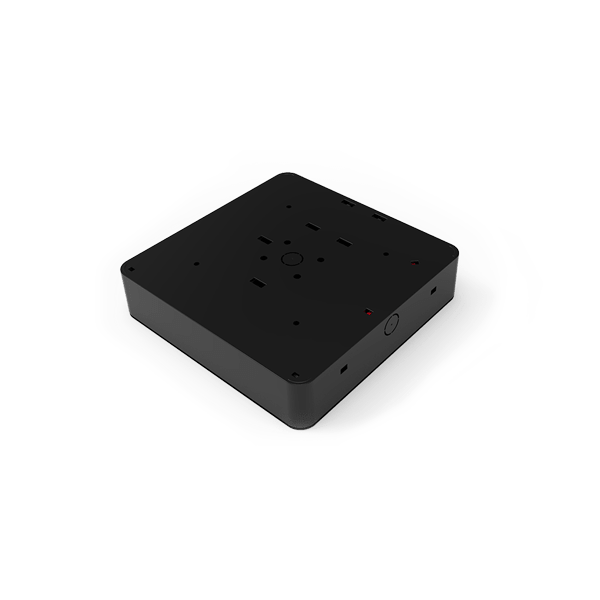

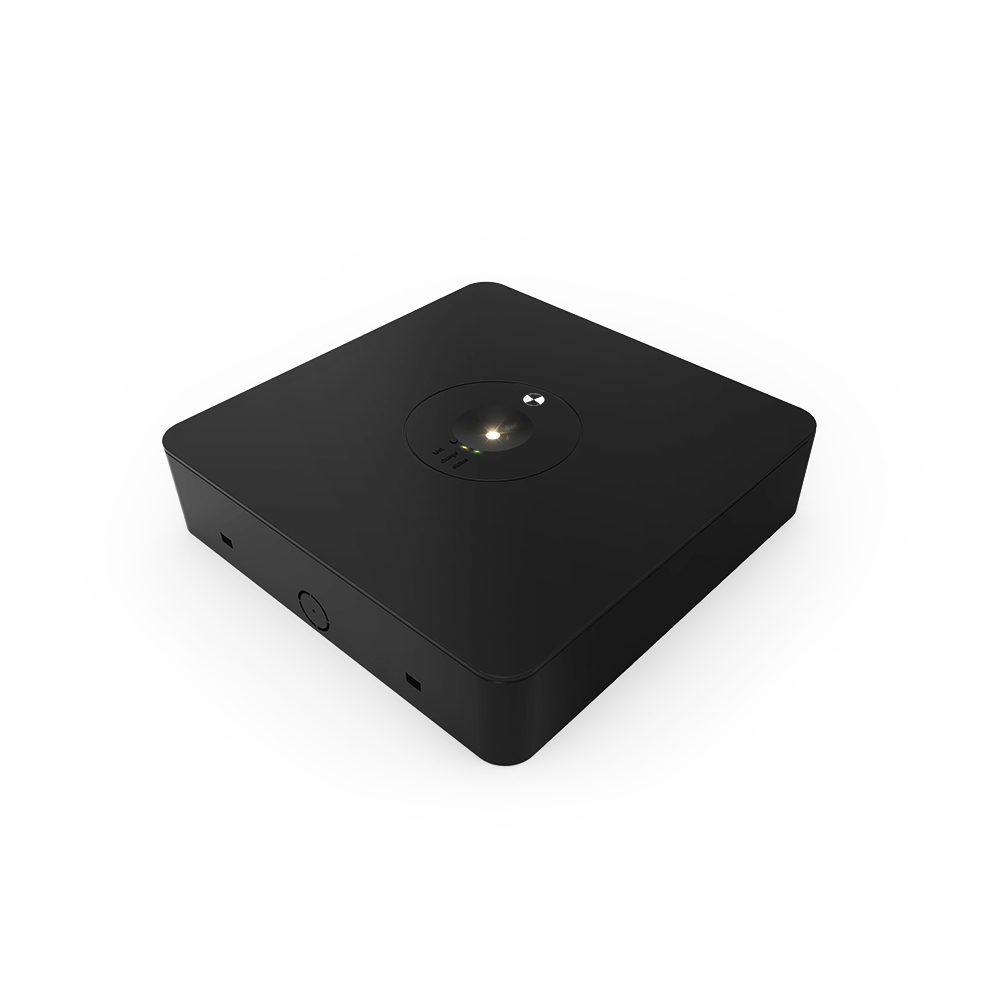

  • Available in black or white
  • Supports DALI-2 wired emergency testing
  • Supports Ektor Lynk wireless emergency testing
  • Non-maintained operation with D50 classification
  • SafeTest – automated self-testing (AS2293/IEC62034)
  • Includes easy-to-rewire junction box for DALI soft wiring leads
  • Non-maintained operation with D80 classification
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Long-life, high quality electronics made with precision SMT processes
  • 12 years design life at max. ambient temperature
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
SKU: Ledfire SM Category:

Mechanical

IP Rating
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		IP20
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		IP65
Fitting Colour
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-CORE-IP65-B
EV-LEDFIRE-SM-ONE-IP65-B
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK		Black
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-LK		White
Body MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		2 W
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		3 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		0.25 W
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		0.4 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Colour temperature

LED Wattage4.3 W

Driver

Driver Type
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B		DALI DT1 Emergency
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		Fixed output
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		Lynk Wireless or DALI-2 with DT1
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		Wireless (IEC62386-104) with DT1
Driver IncludedYes
Integrated DriverYes
Wiring Type
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		Re-wireable terminal block (3 pin)
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		Re-wireable terminal block (4 pin)
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		Re-wireable terminal block (5 pin)
DimmableNo

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency Classification
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		C0:D50, C90:D50
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		C0:D63, C90:D63
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		C0:D80, C90:D80
Emergency Output Power
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		1650 mW
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		2200 mW
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		4300 mW
Replacement Battery Code
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		01303
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		13845
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		18096
Emergency Duration90 mins
Emergency Lumen Output
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		250 lm
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		320 lm
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		370 lm
Emergency Control
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B		DALI Monitored (DT1)
EV-LEDFIRE-SM-CORE-IP65
EV-LEDFIRE-SM-CORE-IP65-B		Ektor SafeTest (Automatic self-test)
EV-LEDFIRE-SM-ADV-IP65-LK
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		IEC62386-104 (Wireless DT1)
EV-LEDFIRE-SM-ONE-IP65
EV-LEDFIRE-SM-ONE-IP65-B		Lynk Wireless or DALI-2
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.

Compliance

Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Unexpected Error: strtoupper(): Argument #1 ($string) must be of type string, array give
Item CodeProduct HeightProduct LengthProduct Width
EV-LEDFIRE-SM-ADV-IP65-B-DA48 mm145 mm145 mm
EV-LEDFIRE-SM-ADV-IP65-DA48 mm145 mm145 mm
EV-LEDFIRE-SM-ADV-IP65-LK48 mm145 mm145 mm
EV-LEDFIRE-SM-CORE-IP6548 mm145 mm145 mm
EV-LEDFIRE-SM-CORE-IP65-B48 mm145 mm145 mm
EV-LEDFIRE-SM-ONE-IP6548 mm145 mm145 mm
EV-LEDFIRE-SM-ONE-IP65-B48 mm145 mm145 mm
EV-LEDFIRE-SM-PRO53 mm230 mm230 mm
EV-LEDFIRE-SM-PRO-B53 mm230 mm230 mm
EV-LEDFIRE-SM-PRO-B-LK53 mm230 mm230 mm
EV-LEDFIRE-SM-PRO-LK53 mm230 mm230 mm
EV/LEDFIRE/SM/ADV/IP65
EV/LEDFIRE/SM/ADV/IP65/7/1
EV/LEDFIRE/SM/CORE/IP65/7/1
EV/LEDFIRE/SM/CORE/IP65
EV/LEDFIRE/SM/ONE/IP65
EV/LEDFIRE/SM
EV/LEDFIRE/PRO/4/1_dimensions
EV/LEDFIRE/PRO/2/1_dimensions
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
11549EV-LEDFIRE-SM-ADV-IP65-B-DALedfire Advanced Surface Mount IP65 - D63 - Black - DALI
11548EV-LEDFIRE-SM-ADV-IP65-DALedfire Advanced Surface Mount IP65 - D63 - DALI
01689EV-LEDFIRE-SM-PROLedfire Pro Surface Mount - D80
01690EV-LEDFIRE-SM-PRO-BLedfire Pro Surface Mount - D80 - Black
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
11550EV-LEDFIRE-SM-ADV-IP65-LKEktor Lynk Ledfire Advanced Surface Mount IP65 - D63 - W/Wireless
10209EV-LEDFIRE-SM-PRO-B-LKEktor Lynk Ledfire Pro Surface Mount - D80 - Black - W/Wireless
10208EV-LEDFIRE-SM-PRO-LKEktor Lynk Ledfire Pro Surface Mount - D80 - W/Wireless
Fixed output
Order codeItem codeDescriptionAvailability
11546EV-LEDFIRE-SM-CORE-IP65Ledfire Core Surface Mount IP65 - D50
11547EV-LEDFIRE-SM-CORE-IP65-BLedfire Core Surface Mount IP65 - D50 - Black
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14859EV-LEDFIRE-SM-ONE-IP65Ektor One Ledfire Surface Mount IP65 - D63 - W/Wireless and DALI
14860EV-LEDFIRE-SM-ONE-IP65-BEktor One Ledfire Surface Mount IP65 - D63 - Black - W/Wireless and DALI
Order codeItem codeDescriptionAvailability
13845EV-2000mAh-3.2V-LiFePO4LiFePO4 Battery 3.2V 2100mAh
01303EV-3000mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 3000mAh
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black
03923EV-LEDFIRE-SM-CASELedfire surface mount Weatherproof case IP66
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
