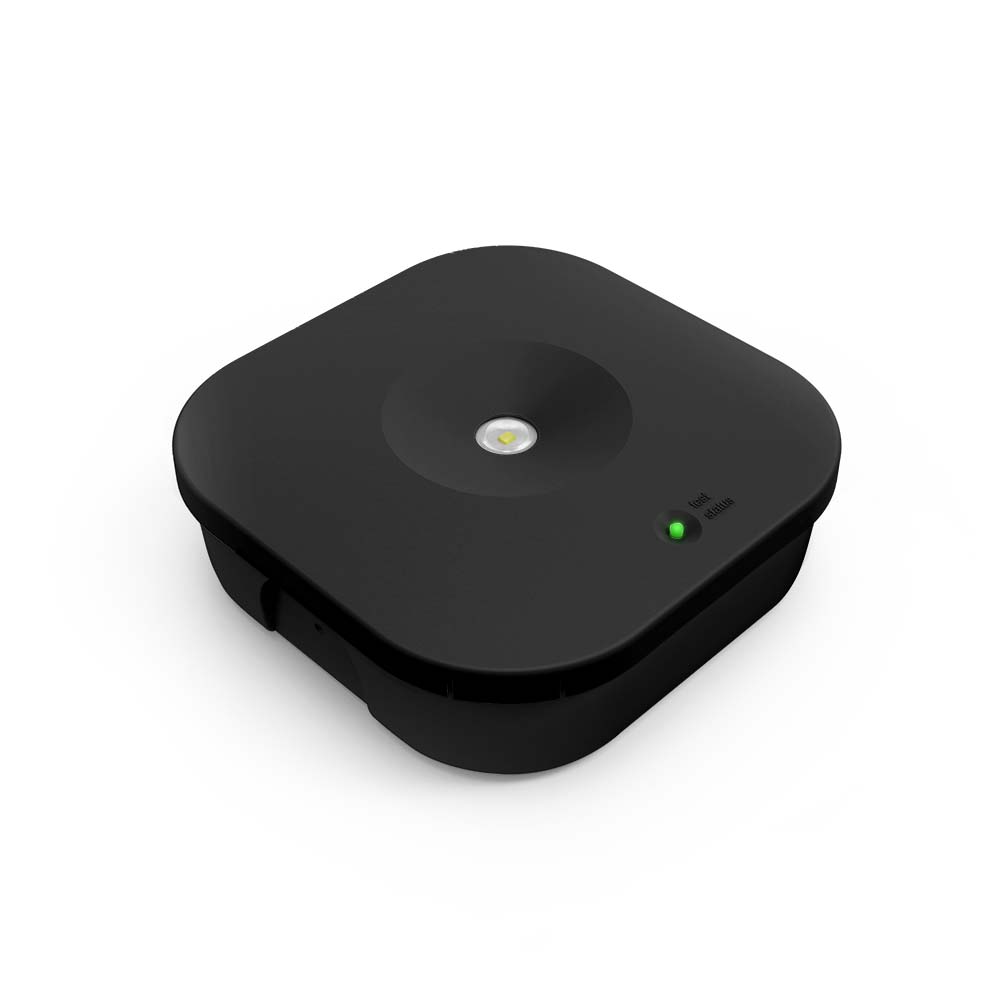

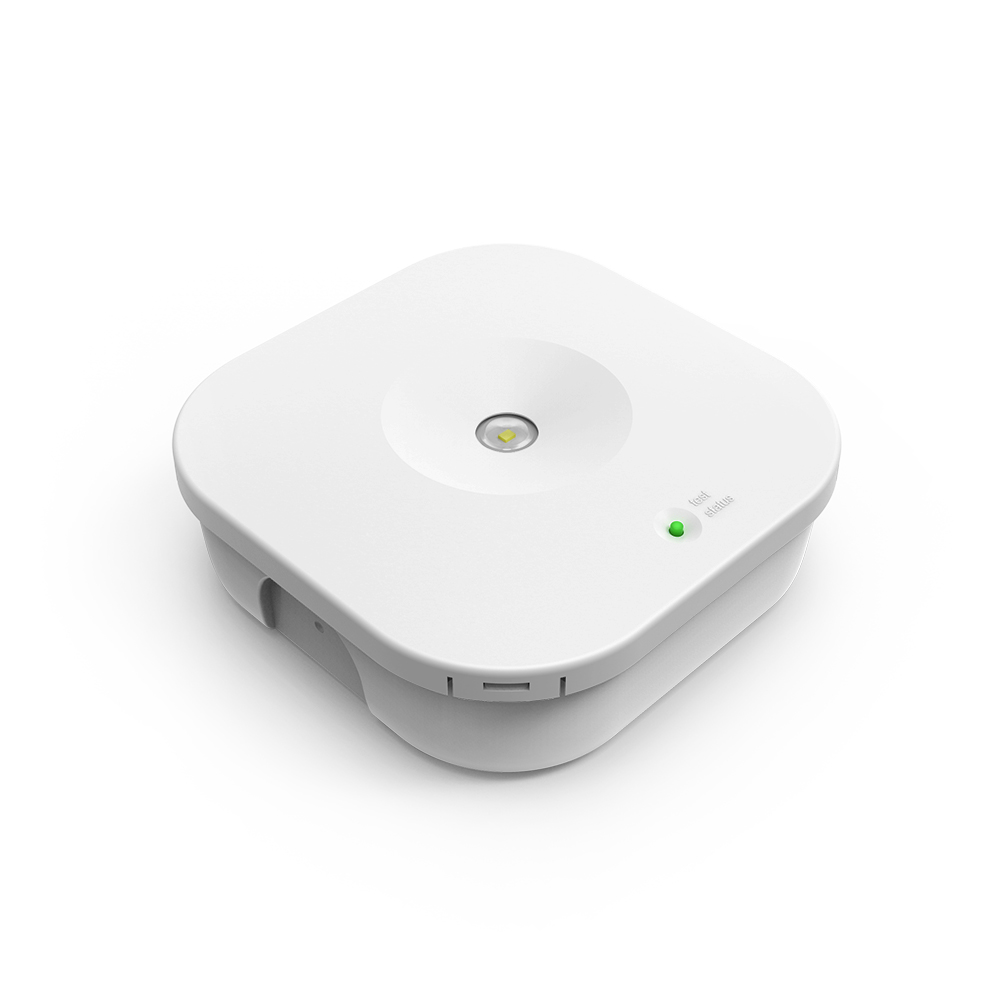

Ledfire SM Adv IP65

$0.00

Advanced Surface Mounted IP65 Emergency Luminaire

  • Non-maintained operation
  • Fully compliant (AS/NZS 2293)
  • Weatherproof IP65 rating
  • Low energy consumption (avg. 0.4W)
  • Wall, ceiling and rod mounting (with rod mount kit)
  • High quality LiFePO4 battery
  • Available in black or white

Selected Models

  • Works with DALI-2 wired monitoring control systems
  • Works with Lynk wireless monitoring control systems
SKU: Ledfire SM Adv IP65 Category: Tag:

Mechanical

Body MaterialPolycarbonate
Fitting Colour
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-B-LK
Black
EV-LEDFIRE-SM-ADV-IP65-DA
EV-LEDFIRE-SM-ADV-IP65-LK
White
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2 W
Standby Power0.4 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Integrated DriverYes
Driver Type
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
DALI DT1 Emergency
EV-LEDFIRE-SM-ADV-IP65-B-LK
EV-LEDFIRE-SM-ADV-IP65-LK
Wireless (IEC62386-104) with DT1
Wiring Type
EV-LEDFIRE-SM-ADV-IP65-B-LK
EV-LEDFIRE-SM-ADV-IP65-LK
Re-wireable terminal block (3 pin)
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
Re-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code18096
Emergency ClassificationC0:D63, C90:D63
Emergency Control
EV-LEDFIRE-SM-ADV-IP65-B-DA
EV-LEDFIRE-SM-ADV-IP65-DA
DALI Monitored (DT1)
EV-LEDFIRE-SM-ADV-IP65-B-LK
EV-LEDFIRE-SM-ADV-IP65-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output320 lm
Emergency ModeNon-Maintained
Emergency Output Power2200 mW

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Product Height48 mm
Product Length145 mm
Product Width145 mm
EV/LEDFIRE/SM/ADV/IP65
EV/LEDFIRE/SM/ADV/IP65/7/1
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
11549EV-LEDFIRE-SM-ADV-IP65-B-DALedfire Advanced Surface Mount IP65 DALI - Black - D63
11548EV-LEDFIRE-SM-ADV-IP65-DALedfire Advanced Surface Mount IP65 DALI - D63
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
11551EV-LEDFIRE-SM-ADV-IP65-B-LKEktor Lynk Advanced Ledfire Surface Mount IP65 - Black - D63 - W/Wireless
11550EV-LEDFIRE-SM-ADV-IP65-LKEktor Lynk Advanced Ledfire Surface Mount IP65 - D63 - W/Wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
