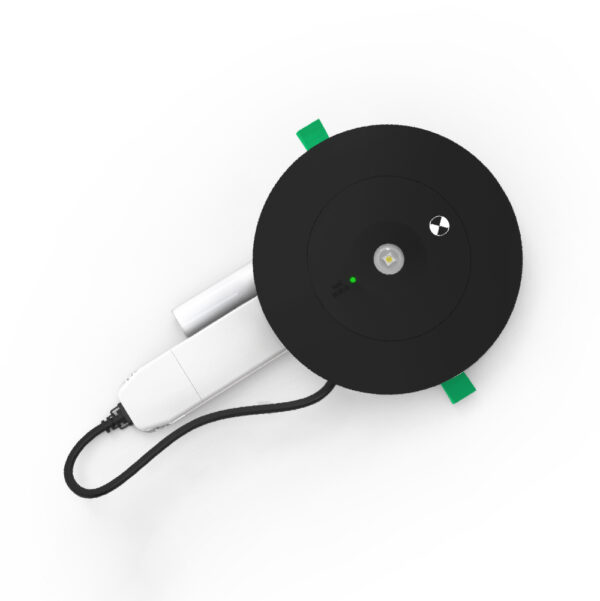

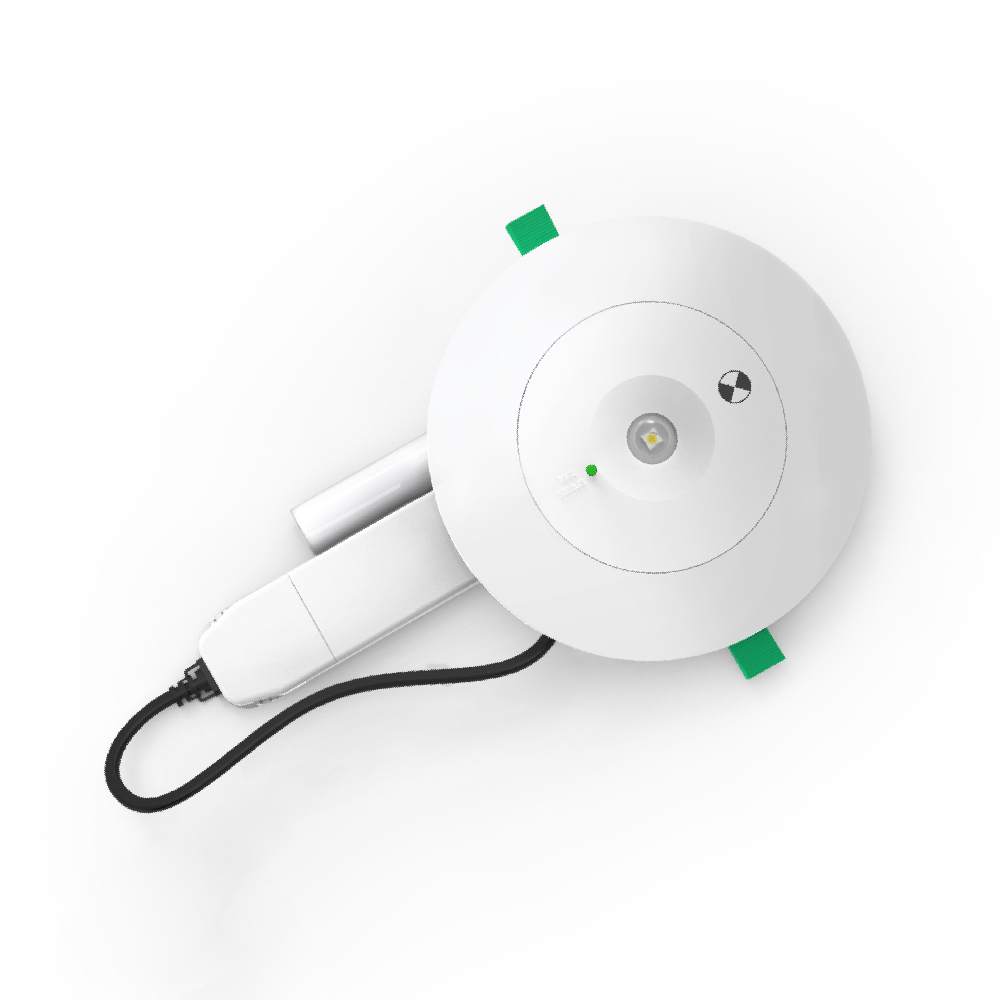

Ledfire

Emergency Luminaire

  • Non-maintained operation with D50 classification
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.45W)
  • Includes outer ring to suit hole sizes up to 130 mm
  • Long-life, high quality electronics made with precision SMT processes
  • 6 years design life at max. ambient temperature
  • High quality lithium battery (LiFePO4) and smart charger meets and exceeds relevant safety standards
  • Smart charger protects and extends battery life and minimises power consumption
  • Standalone (SPU)
SKU: Ledfire Category:

Mechanical

IP RatingIP44 Front Face Only
Fitting ColourWhite
Body MaterialPolycarbonate
Installation TypeRecessed

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage1.6 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.45 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver TypeFixed output
Driver IncludedYes
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency ClassificationC0:D50, C90:D50
Emergency Output Power1500 mW
Replacement Battery Code01300
Emergency Duration90 mins
Emergency Lumen Output250 lm

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height16 mm
Cutout70 (inner), 75-130 (outer) mm
Product Diameter84 mm
EV/LEDFIRE/CORE SER II
EV/LEDFIRE/CORE
Order codeItem codeDescriptionAvailability
01696EV-LEDFIRE-CORELedfire Core Emergency Luminaire - D50

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
EV/LEDFIRE/CORE
