The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.
Mechanical
IP Rating
IP66
IK Rating
IK08
Adjustability
Adjustable
Fitting Colour
Silver-grey
Product Finish
Powdercoated
Body Material
Aluminium
Diffuser Material
Glass
Installation Type
Surface mount
Electrical
Working Temp Range
50 °C
Input Frequency
50 Hz
Power Factor
0.97
Input voltage
230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Earth Leakage
0.75 mA
Power Selection

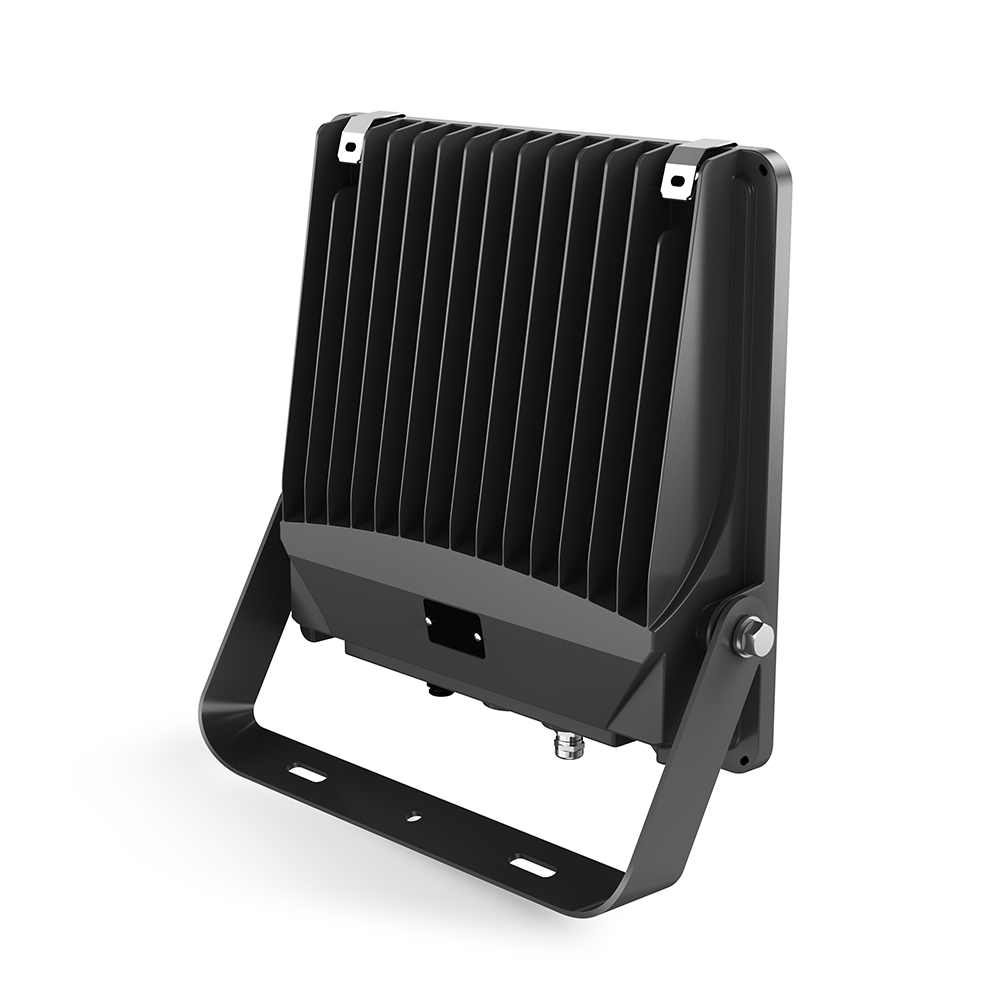

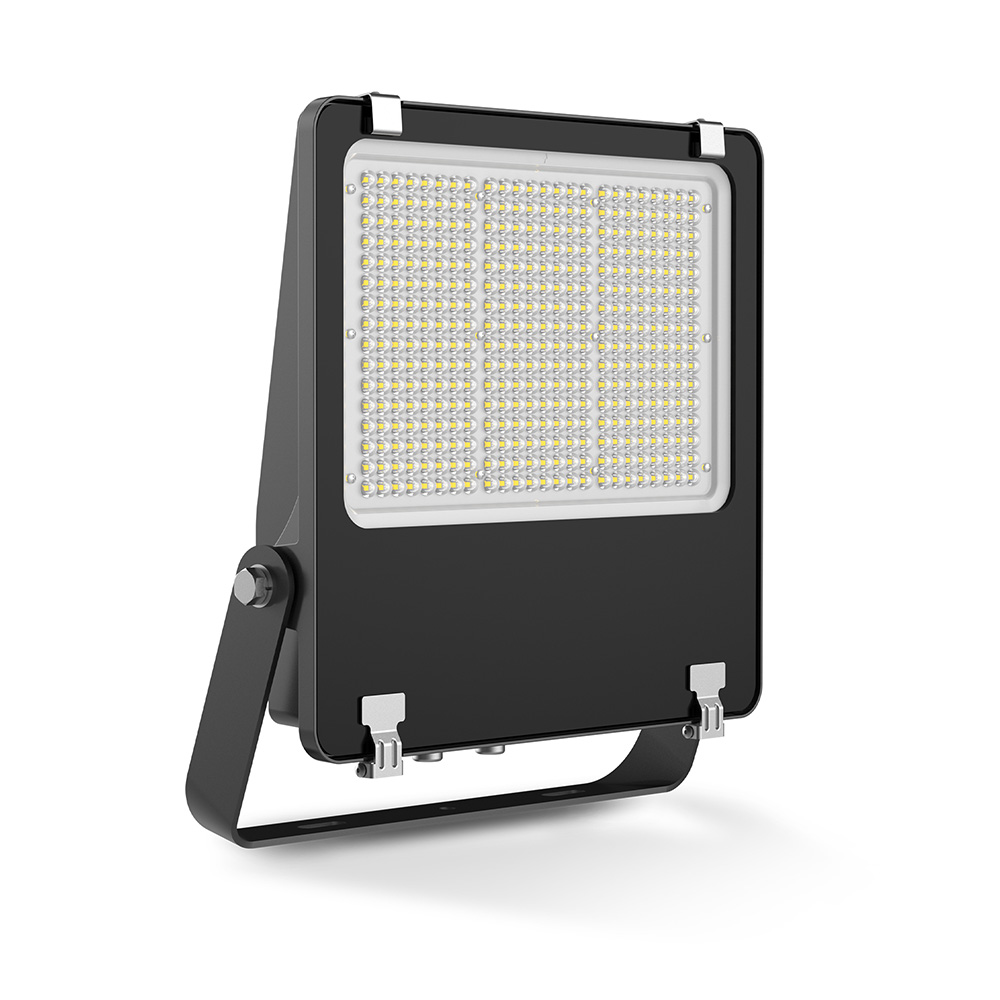

EV-ALTURA-ADV-240
120 / 180 / 240 W

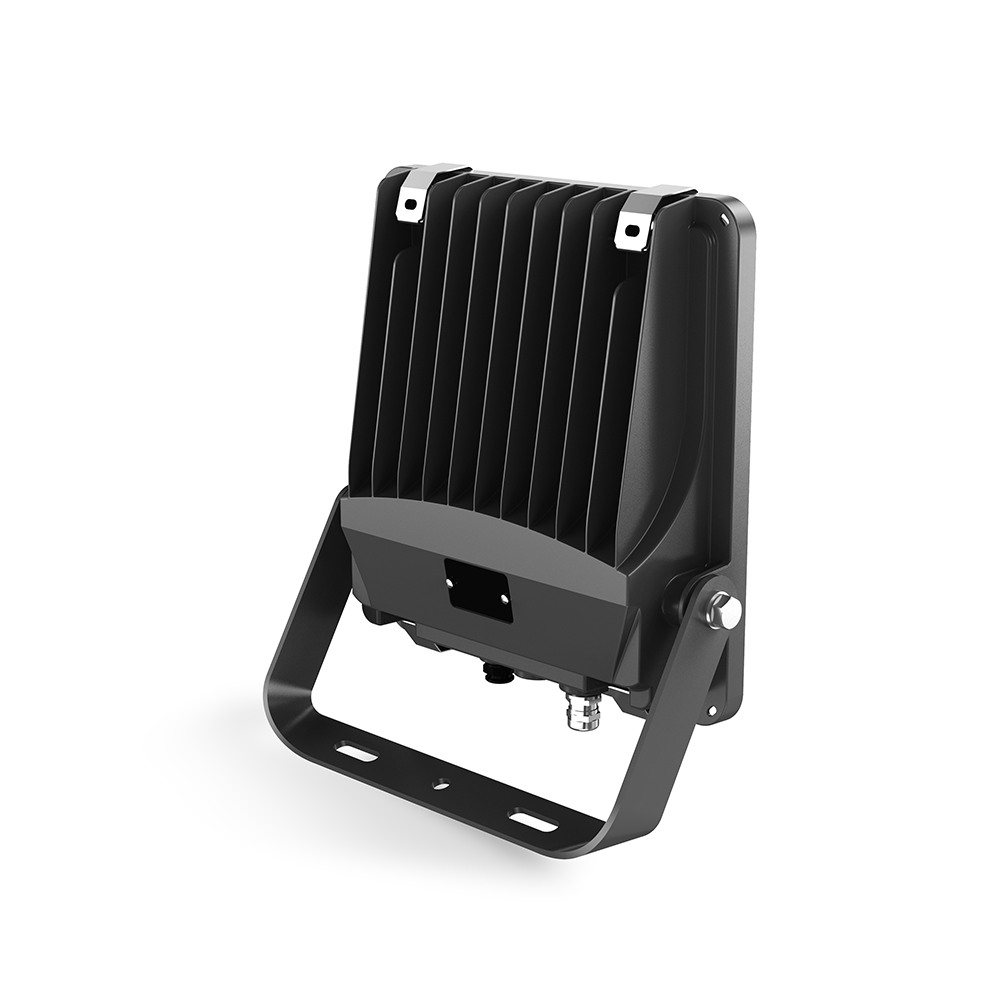

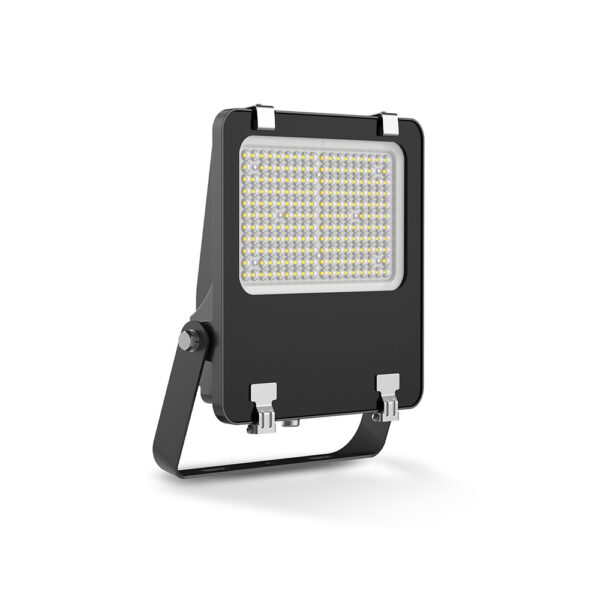

EV-ALTURA-ADV-150
75 / 113 / 150 W
Lamp
CCT Configuration
Single
Beam Angle
Asymmetric °
Colour temperature
EV-ALTURA-ADV-150
113 Watts
DayLight (5000 K)
16900 lm
150 Watts
DayLight (5000 K)
21750 lm
75 Watts
Daylight (5000 K)
11550 lm
EV-ALTURA-ADV-240
180 Watts
DayLight (5000 K)
29000 lm
240 Watts
DayLight (5000 K)
37150 lm
120 Watts
Daylight (5000 K)
20000 lm
Driver
Driver Type
1-10V dimmable
Driver Included
Yes
Integrated Driver
Yes
Dimmable
Yes
Flex & Plug or Lead Length
1500 mm
Wiring Type
Flying leads (3 wire)
Driver Mode
Constant Current
Compliance
Standards
AS/NZS 60598.1
AS/NZS 60598.2.5
AS CISPR 15
Warranty
VIP Warranty
2 Onsite, 3 RTB (Total 5 Years)
Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page.
